3. (a) (5 pts.) Design an open-circuited microstrip stub on alumina substrate (substrate thickness h=0.254mm and dielect

[answerhappygod]

3 A 5 Pts Design An Open Circuited Microstrip Stub On Alumina Substrate Substrate Thickness H 0 254mm And Dielect 1 (31.44 KiB) Viewed 21 times

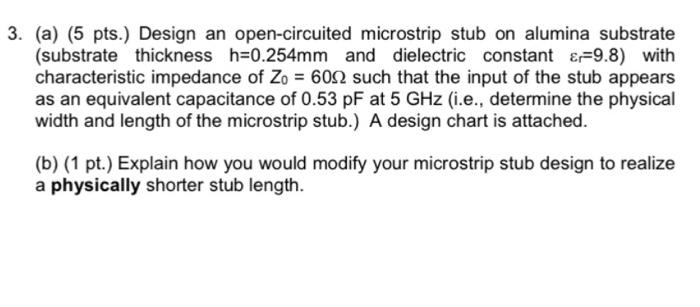

3. (a) (5 pts.) Design an open-circuited microstrip stub on alumina substrate (substrate thickness h=0.254mm and dielectric constant &=9.8) with characteristic impedance of Zo = 6012 such that the input of the stub appears as an equivalent capacitance of 0.53 pF at 5 GHz (i.e., determine the physical width and length of the microstrip stub.) A design chart is attached. (b) (1 pt.) Explain how you would modify your microstrip stub design to realize a physically shorter stub length.
