4. Choose 5 voltages from OV to 10V and, for each value, determine the voltage across each resistor and the current thro

[answerhappygod]

4 Choose 5 Voltages From Ov To 10v And For Each Value Determine The Voltage Across Each Resistor And The Current Thro 1 (298.83 KiB) Viewed 14 times

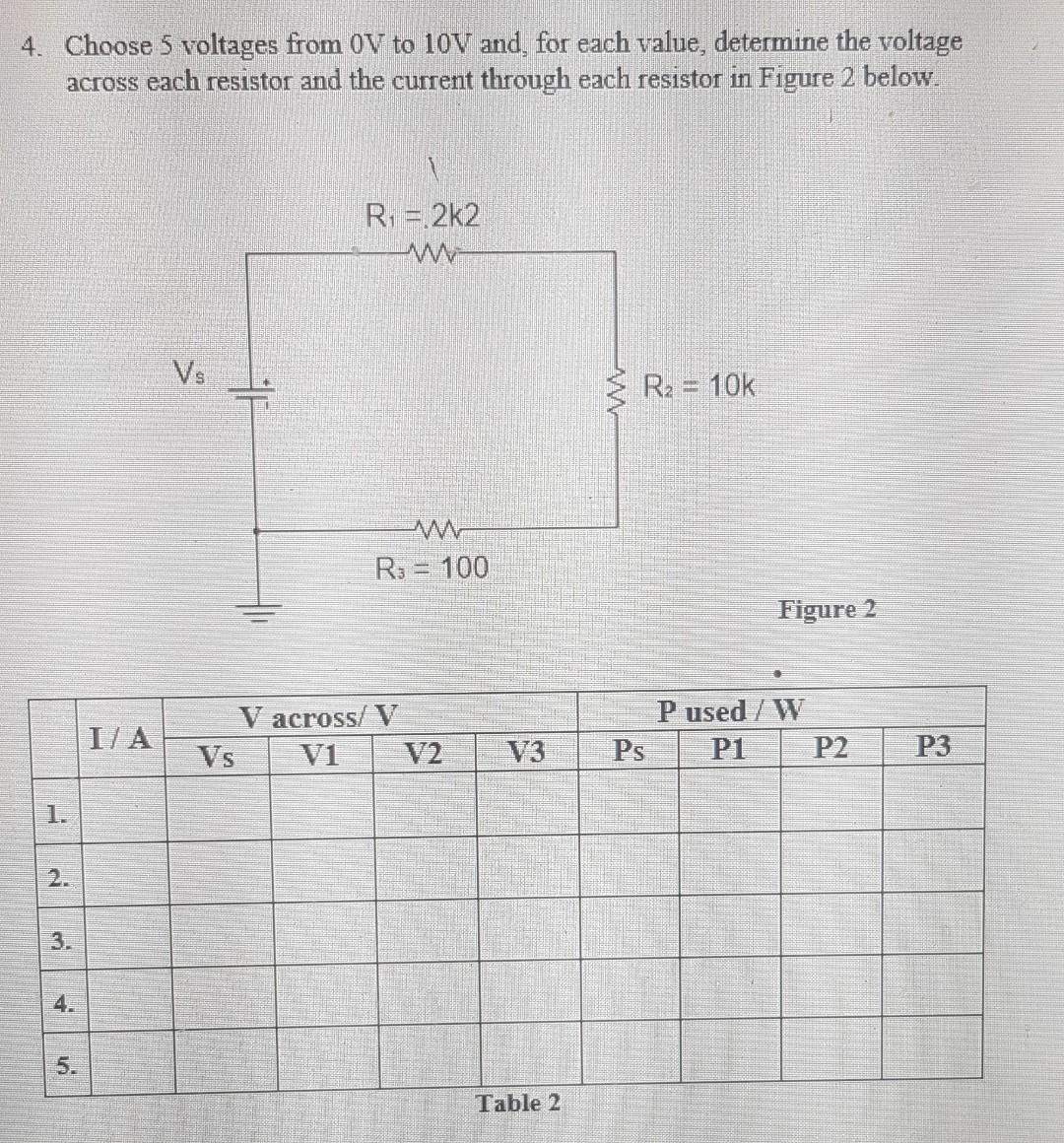

4. Choose 5 voltages from OV to 10V and, for each value, determine the voltage across each resistor and the current through each resistor in Figure 2 below. R1 = 2k2 W Vs 3 R2 = 10k W R; = 100 Figure 2 I/A V across/ V Vs V1 V2 P used / W Ps P1 P2 V3 P3 1. 3. 5. Table 2
