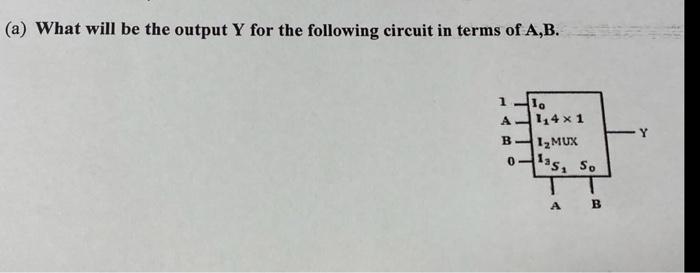

(a) What will be the output Y for the following circuit in terms of A,B. 1 10 A114x1 B 12 MUX S. Y 0-as, A B

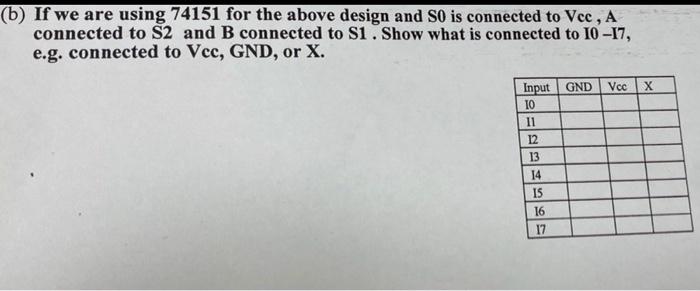

9 (b) If we are using 74151 for the above design and So is connected to Vec, A connected to S2 and B connected to S1. Show what is connected to 10-17, e.g. connected to Vcc, GND, or X. . Voc х Input GND 10 11 12 13 14 IS 16 17
