6) The magnitude and phase bode plot (and the asymptotic plot) of a system are shown below: a) Estimate the transfer fun

[answerhappygod]

6 The Magnitude And Phase Bode Plot And The Asymptotic Plot Of A System Are Shown Below A Estimate The Transfer Fun 1 (50.78 KiB) Viewed 28 times

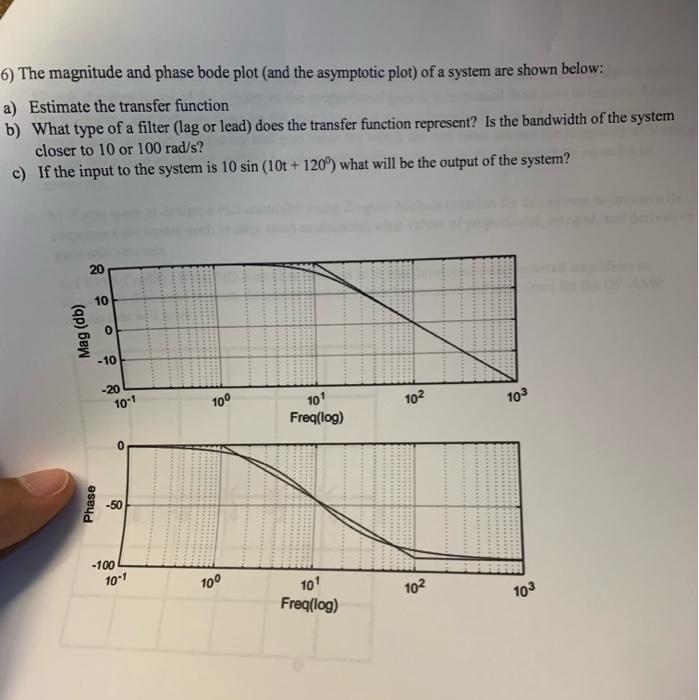

6) The magnitude and phase bode plot (and the asymptotic plot) of a system are shown below: a) Estimate the transfer function b) What type of a filter (lag or lead) does the transfer function represent? Is the bandwidth of the system closer to 10 or 100 rad/s? c) If the input to the system is 10 sin (10t + 120%) what will be the output of the system? 20 10 Mag (db) 0 - 10 -20 10-1 10° 102 103 101 Freq(log) O Phase 50 -100 10-1 100 101 102 103 Freq[log)
