Revision 3 1. Find the expressions from each k-map and demonstrate the logic diagram using PLA technologies. AB CD 00 01

Post by answerhappygod »

Revision 3 1 Find The Expressions From Each K Map And Demonstrate The Logic Diagram Using Pla Technologies Ab Cd 00 01 1

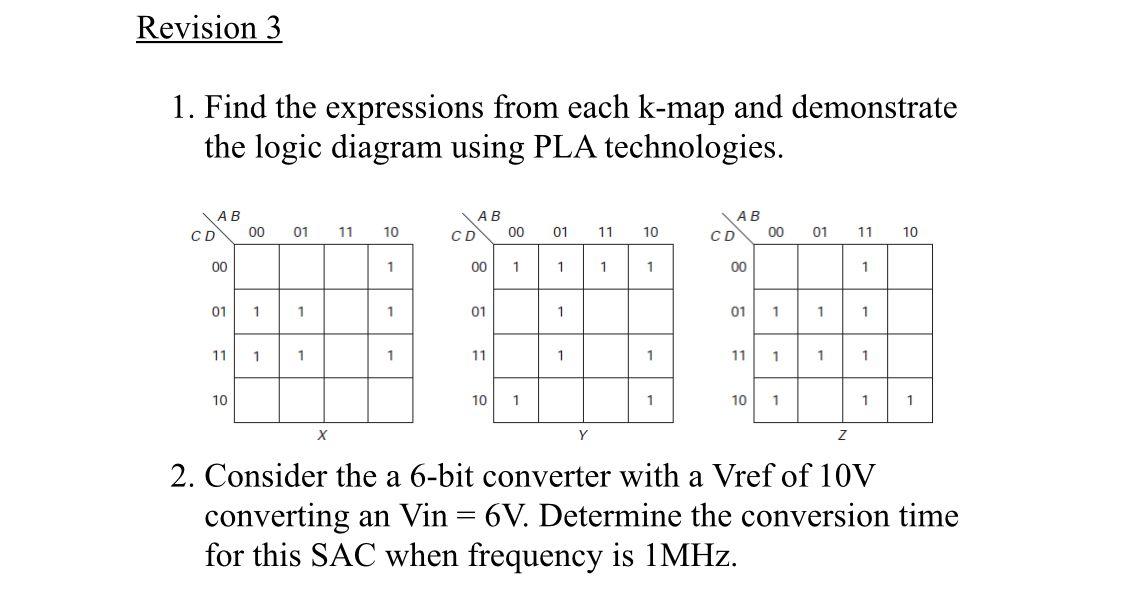

Revision 3 1 Find The Expressions From Each K Map And Demonstrate The Logic Diagram Using Pla Technologies Ab Cd 00 01 1 (67.49 KiB) Viewed 20 times
Revision 3 1. Find the expressions from each k-map and demonstrate the logic diagram using PLA technologies. AB CD 00 0111 AB CD 00 10 AB CD 00 01 11 10 01 11 10 00 1 00 1 1 1 1 00 1 01 1 1 1 01 1 1 01 1 1 1 1 11 1 1 1 1 11 1 1 11 1 1 1 10 10 1 1 10 1 1 1 х Y Z Z 2. Consider the a 6-bit converter with a Vref of 10V a converting an Vin = 6V. Determine the conversion time for this SAC when frequency is 1MHz.
