0 to 120 VRMS, 8 A, 60 Hz Variac Supply 80VA, 40/80 V/V, 60 Hz Transformer
0 to 120 VRMS, 8 A, 60 Hz Variac Supply
80VA, 40/80 V/V, 60 Hz Transformer

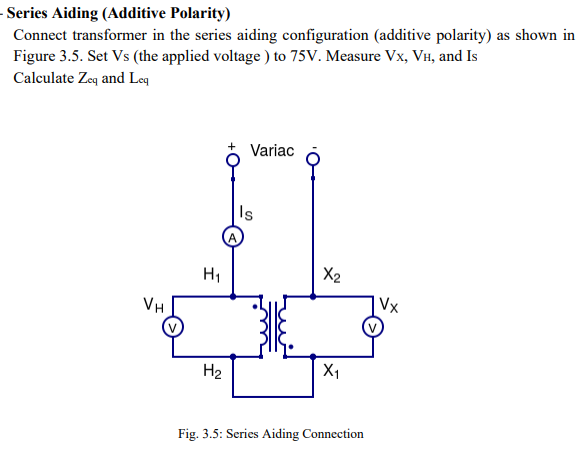

Series Aiding (Additive Polarity) Connect transformer in the series aiding configuration (additive polarity) as shown in Figure 3.5. Set Vs (the applied voltage ) to 75V. Measure Vx, Vh, and Is Calculate Zeq and Leq Variac Is H1 X2 VH H2 X1 Fig. 3.5: Series Aiding Connection
Calculated Values ZEQ LEQ
80VA, 40/80 V/V, 60 Hz Transformer
Series Aiding (Additive Polarity) Connect transformer in the series aiding configuration (additive polarity) as shown in Figure 3.5. Set Vs (the applied voltage ) to 75V. Measure Vx, Vh, and Is Calculate Zeq and Leq Variac Is H1 X2 VH H2 X1 Fig. 3.5: Series Aiding Connection
Calculated Values ZEQ LEQ
