0 to 120 VRMS, 8 A, 60 Hz Variac Supply
80VA, 40/80 V/V, 60 Hz Transformer
0 To 120 Vrms 8 A 60 Hz Variac Supply 80va 40 80 V V 60 Hz Transformer 1 (40.8 KiB) Viewed 41 times
0 To 120 Vrms 8 A 60 Hz Variac Supply 80va 40 80 V V 60 Hz Transformer 2 (4.46 KiB) Viewed 41 times

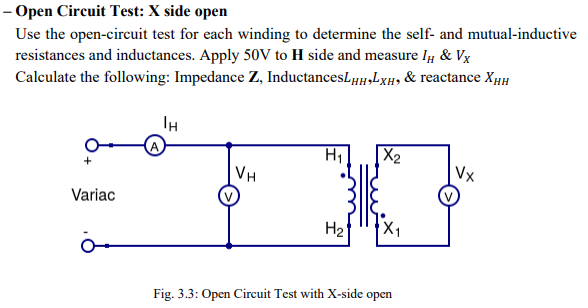

- Open Circuit Test: X side open Use the open-circuit test for each winding to determine the self- and mutual-inductive resistances and inductances. Apply 50V to H side and measure IH & Vx Calculate the following: Impedance Z, InductancesLuLXH, & reactance Xh TH H1 X2 VH VX Variac H2 Fig. 3.3: Open Circuit Test with X-side open
Calculated Values LAH LxH z Xнн
