3. For the given circuit in figure 5, build circuit by using Multisim and a. Describe the procedure of the experiment to

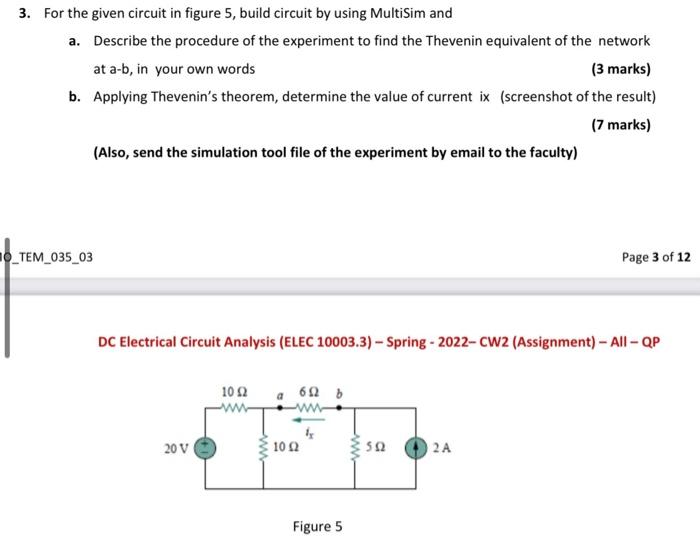

3. For the given circuit in figure 5, build circuit by using Multisim and a. Describe the procedure of the experiment to find the Thevenin equivalent of the network at a-b, in your own words (3 marks) b. Applying Thevenin's theorem, determine the value of current ix (screenshot of the result) (7 marks) (Also, send the simulation tool file of the experiment by email to the faculty) O_TEM_035_03 Page 3 of 12 DC Electrical Circuit Analysis (ELEC 10003.3) - Spring - 2022-CW2 (Assignment) - All - QP 10Ω α 6Ω και w 20 V 10Ω 522 2A Figure 5
