3. Determine the resistance of a bar of n-type silicon at room temperature(300°K). The length of the bar is 10 cm and it
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3. Determine the resistance of a bar of n-type silicon at room temperature(300°K). The length of the bar is 10 cm and it

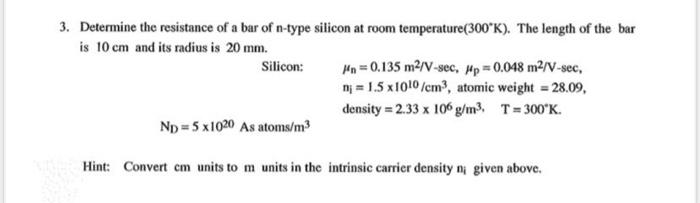

3. Determine the resistance of a bar of n-type silicon at room temperature(300°K). The length of the bar is 10 cm and its radius is 20 mm. Silicon: In = 0.135 m2/V-sec, Mp=0.048 m2/V-sec, n = 1.5 x 1010 /cm3, 3, atomic weight = 28.09, density = 2.33 x 106 g/m3. T= 300K. ND = 5 x1020 As atoms/m3 Hint: Convert em units to m units in the intrinsic carrier density ni given above.
