2) Analyze the circuit below and provide a proposal for R1, R2 and R3 values in Table 2. For the answer to this question

[answerhappygod]

2 Analyze The Circuit Below And Provide A Proposal For R1 R2 And R3 Values In Table 2 For The Answer To This Question 1 (41.75 KiB) Viewed 9 times

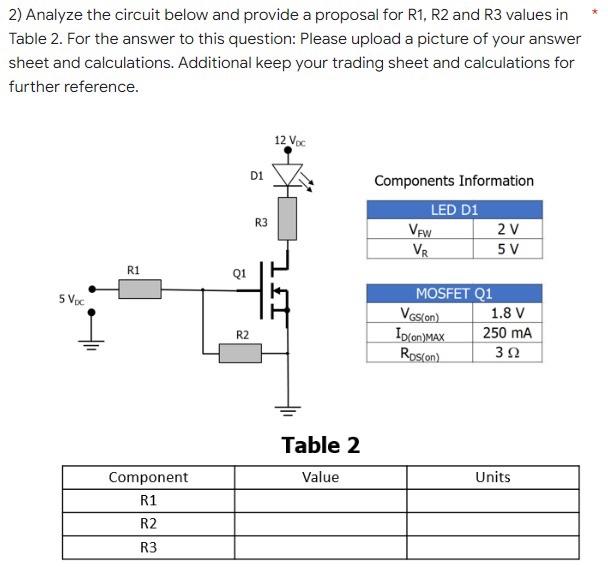

2) Analyze the circuit below and provide a proposal for R1, R2 and R3 values in Table 2. For the answer to this question: Please upload a picture of your answer sheet and calculations. Additional keep your trading sheet and calculations for further reference. 12 Voc D1 Components Information LED D1 VEW 2 v 5 V R3 VR R1 Q1 5 Voc MOSFET Q1 VGS(on) 1.8 V Ip(on)MAX 250 mA Roscon) 3Ω R2 Table 2 Value Units Component R1 R2 R3
