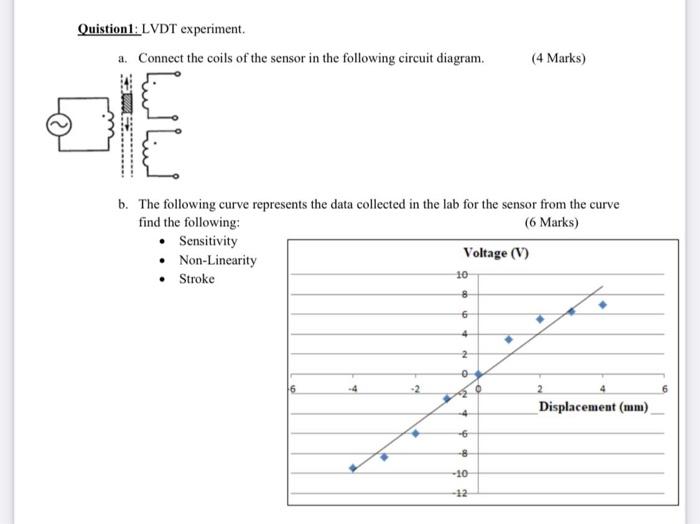

Quistion1: LVDT experiment. a. Connect the coils of the sensor in the following circuit diagram. (4 Marks) lin b. The following curve represents the data collected in the lab for the sensor from the curve find the following: (6 Marks) • Sensitivity • Non-Linearity Voltage (V) • Stroke A 10 8 6 4 2 Displacement (mm) -4 -6 8 de de -10 -12
