Each conductor of the bundled-conductor line shown in Figure 1 is a four conductor bundle The conductors have a diameter

[answerhappygod]

Each Conductor Of The Bundled Conductor Line Shown In Figure 1 Is A Four Conductor Bundle The Conductors Have A Diameter 1 (68.75 KiB) Viewed 11 times

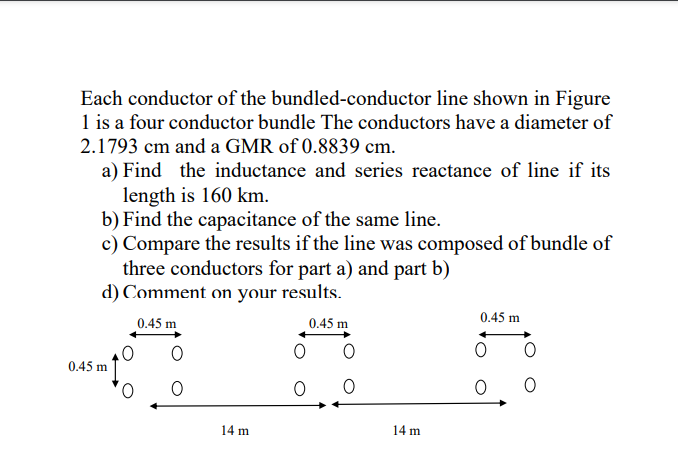

Each conductor of the bundled-conductor line shown in Figure 1 is a four conductor bundle The conductors have a diameter of 2.1793 cm and a GMR of 0.8839 cm. a) Find the inductance and series reactance of line if its length is 160 km. b) Find the capacitance of the same line. c) Compare the results if the line was composed of bundle of three conductors for part a) and part b) d) Comment on your results. 0.45 m 0.45 m 0.45 m O 0 0 O 0.45 m O 0 0 14 m 14 m
