Exercise 4 A lossless resonant half-wavelength dipole antenna, with input impedance of 73 12, is connected to a transmis

Post by answerhappygod »

Exercise 4 A Lossless Resonant Half Wavelength Dipole Antenna With Input Impedance Of 73 12 Is Connected To A Transmis 1
Exercise 4 A Lossless Resonant Half Wavelength Dipole Antenna With Input Impedance Of 73 12 Is Connected To A Transmis 1 (25.47 KiB) Viewed 13 times

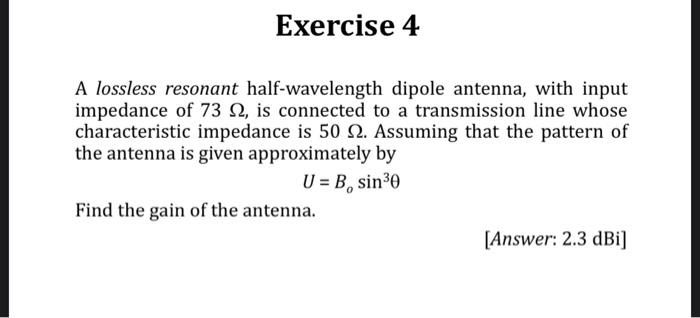

Exercise 4 A lossless resonant half-wavelength dipole antenna, with input impedance of 73 12, is connected to a transmission line whose characteristic impedance is 50 32. Assuming that the pattern of the antenna is given approximately by U = B, sine Find the gain of the antenna. [Answer: 2.3 dBi]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
