Consider 120° conduction angle. Consider the following data for your calculation: V=400V, Ry=492, and fo =50Hz. (a) Draw

Post by answerhappygod »

Consider 120 Conduction Angle Consider The Following Data For Your Calculation V 400v Ry 492 And Fo 50hz A Draw 1
Consider 120 Conduction Angle Consider The Following Data For Your Calculation V 400v Ry 492 And Fo 50hz A Draw 1 (77.65 KiB) Viewed 12 times

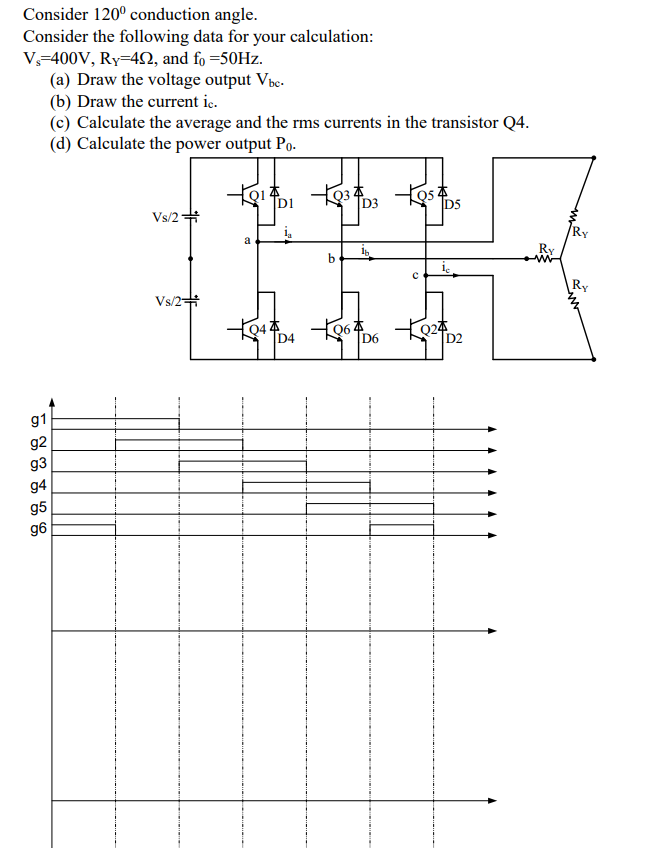

Consider 120° conduction angle. Consider the following data for your calculation: V=400V, Ry=492, and fo =50Hz. (a) Draw the voltage output Vbe. (b) Draw the current ic. (c) Calculate the average and the rms currents in the transistor Q4. (d) Calculate the power output Po. 93 034 D3 os DI DS Vs/2 + Ry a vo Ry w ic Ry Vs/2+1 944 D4 964. 924 D6 D2 to g1 g2 g3 94 g5 g6
