a) Gain,Av= ? b) why do we use C5,R2,R3,C3

Post by answerhappygod »

a) Gain,Av= ?
b) why do we use C5,R2,R3,C3

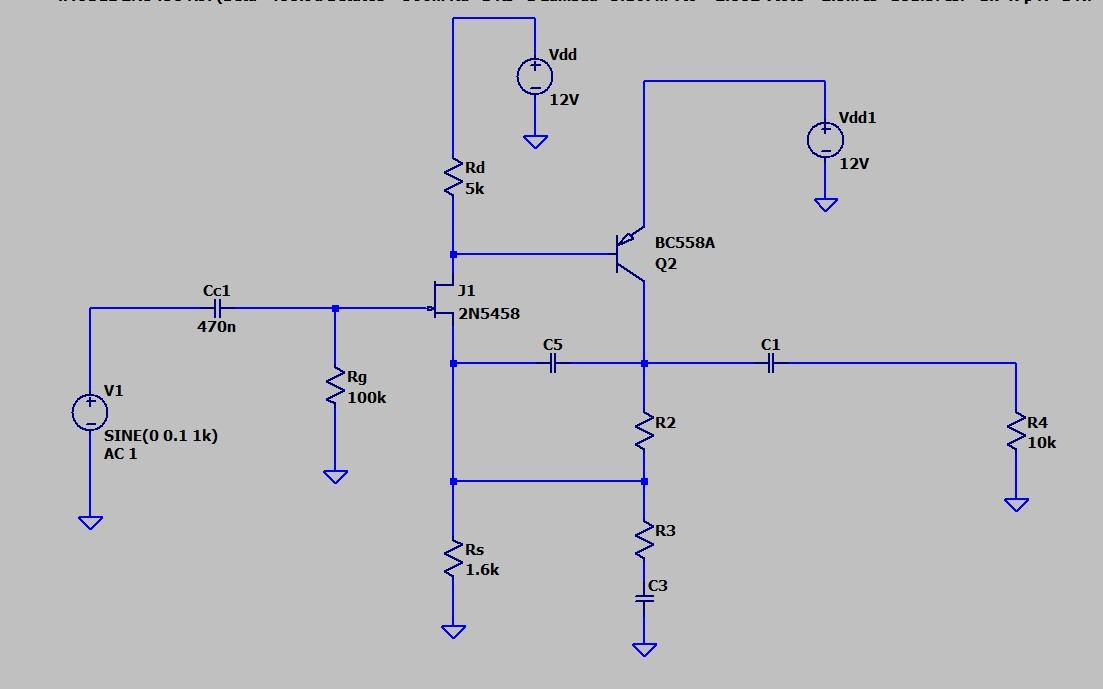

A Gain Av B Why Do We Use C5 R2 R3 C3 1
A Gain Av B Why Do We Use C5 R2 R3 C3 1 (37.83 KiB) Viewed 20 times
Vdd Di 12V Vdd1 12V Rd 5k BC558A Q2 Cc1 J1 2N5458 470n C5 요 5+ + V1 Rg 100k 322 SINE(O 0.1 1k) AC 1 R4 10k = R3 Rs 1.6k ro
