1. For the circuit given in Figure 1, (a) obtain the fundamental cut set equations associated with the tree branches {1,

[answerhappygod]

1 For The Circuit Given In Figure 1 A Obtain The Fundamental Cut Set Equations Associated With The Tree Branches 1 1 (61.12 KiB) Viewed 12 times

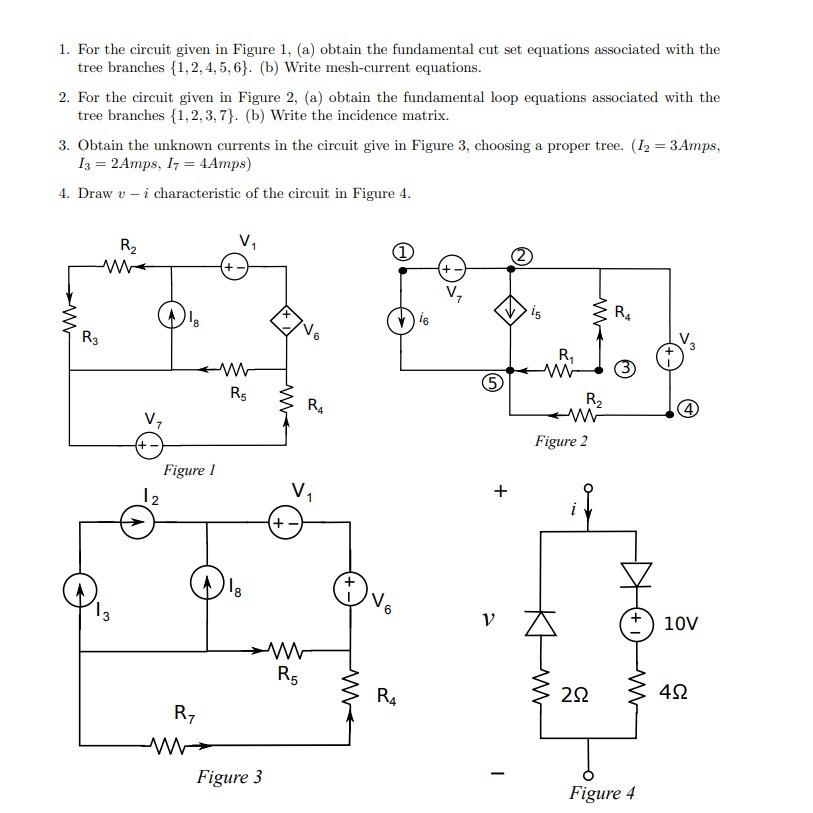

1. For the circuit given in Figure 1, (a) obtain the fundamental cut set equations associated with the tree branches {1,2,4,5,6). (b) Write mesh-current equations. 2. For the circuit given in Figure 2, (a) obtain the fundamental loop equations associated with the tree branches {1, 2, 3, 7}. (b) Write the incidence matrix. 3. Obtain the unknown currents in the circuit give in Figure 3, choosing a proper tree. (12 = 3Amps, 13 = 2 Amps, 17 = 4Amps) 4. Draw v - i characteristic of the circuit in Figure 4. R2 1 + + 16 is R4 W R3 R 3 w RS Wt RA 4 V R2 w Figure 2 +- Figure / 12 + i ii + - 6 V 10V RE w Ra W 232 4Ω w R7 Figure 3 Figure 4
