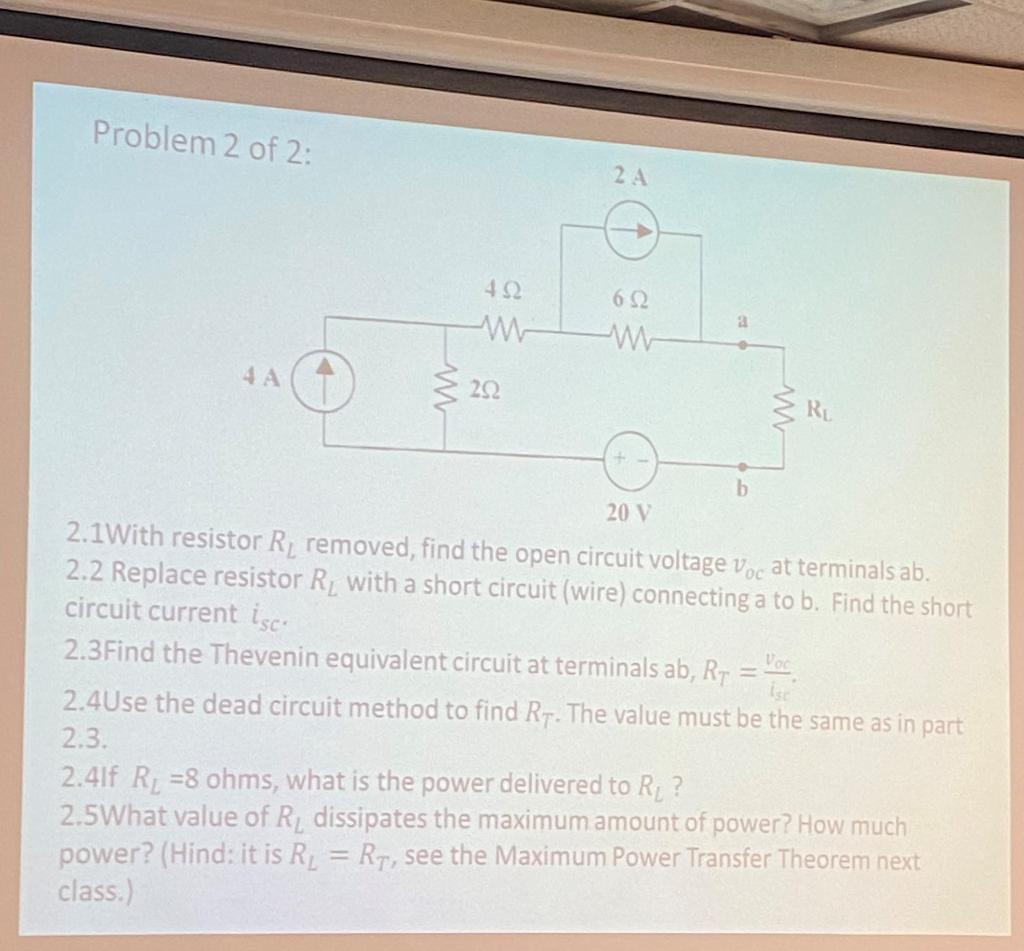

Problem 2 of 2 2A 412 6 Ω 2 M. 292 Ru W b 20 V 2.1 With resistor R, removed, find the open circuit voltage Voc at termin

[answerhappygod]

1 (89.57 KiB) Viewed 7 times

Problem 2 of 2 2A 412 6 Ω 2 M. 292 Ru W b 20 V 2.1 With resistor R, removed, find the open circuit voltage Voc at terminals ab. 2.2 Replace resistor R, with a short circuit (wire) connecting a to b. Find the short circuit current ises 2.3 Find the Thevenin equivalent circuit at terminals ab, Ry = Voc 2.4Use the dead circuit method to find Rr. The value must be the same as in part 2.3. 2.41f Ri =8 ohms, what is the power delivered to R; ? 2.5What value of Ri dissipates the maximum amount of power? How much power? (Hind: it is R = Ry, see the Maximum Power Transfer Theorem next class.) is
