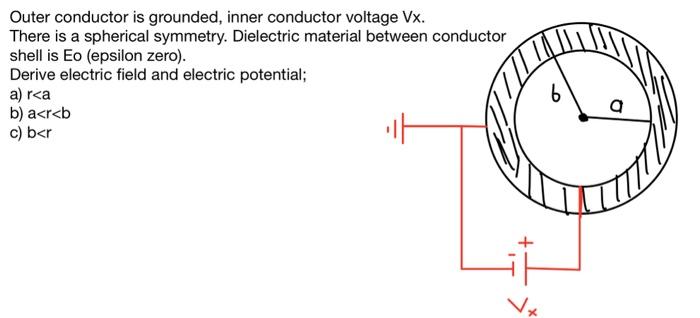

Outer conductor is grounded, inner conductor voltage Vx. There is a spherical symmetry. Dielectric material between conductor shell is Eo (epsilon zero). Derive electric field and electric potential; a) r<a b) a<r<b c) b<r 6 a Nx
