The opamp in Figure 2 is ideal. Determine the oscillating frequency fo and parameter b as a function of circuit paramete

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The opamp in Figure 2 is ideal. Determine the oscillating frequency fo and parameter b as a function of circuit paramete

Post by answerhappygod »

The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 1
The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 1 (20.24 KiB) Viewed 24 times
The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 2
The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 2 (20.24 KiB) Viewed 24 times
The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 3
The Opamp In Figure 2 Is Ideal Determine The Oscillating Frequency Fo And Parameter B As A Function Of Circuit Paramete 3 (20.24 KiB) Viewed 24 times

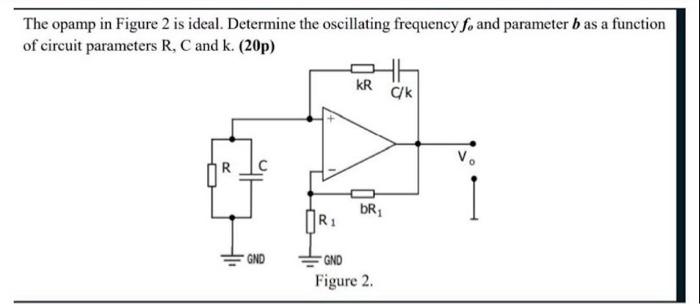

The opamp in Figure 2 is ideal. Determine the oscillating frequency fo and parameter b as a function of circuit parameters R, C and k. (20p) KR Ck Vo R DR1 1 GND GND Figure 2.
