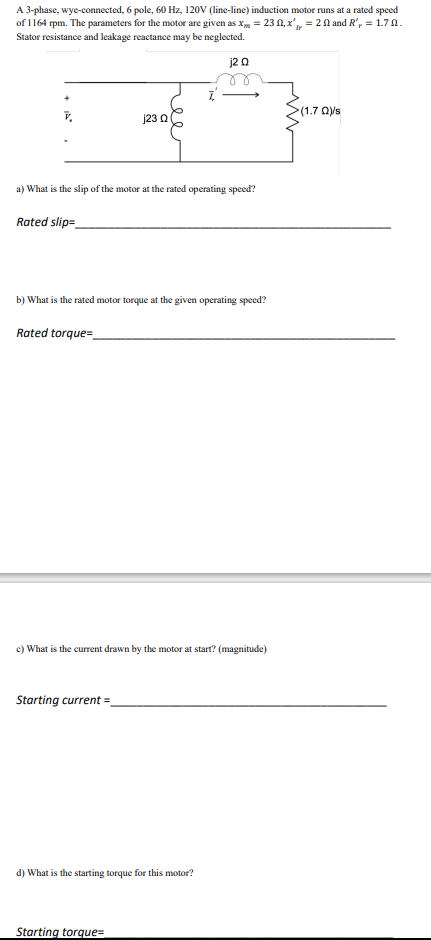

- A 3 Phase Wye Connected 6 Pole 60 Hz 120v Line Line Induction Motor Runs At A Rated Speed Of 1164 Rpm The Paramet 1 (40.08 KiB) Viewed 9 times
A 3-phase, wye-connected, 6 pole, 60 Hz, 120V (line-line) induction motor runs at a rated speed of 1164 rpm. The paramet
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A 3-phase, wye-connected, 6 pole, 60 Hz, 120V (line-line) induction motor runs at a rated speed of 1164 rpm. The paramet
A 3-phase, wye-connected, 6 pole, 60 Hz, 120V (line-line) induction motor runs at a rated speed of 1164 rpm. The parameters for the motor are given as Xime = 23 1.x' = 20 and R', = 1.70. Stator resistance and leakage reactance may be neglected. j2 7 (1.7 Qys 1230 a) What is the slip of the motor at the rated operating speed? Rated slip- b) What is the rated motor torque at the given operating speed? Rated torque c) What is the current drawn by the motor at start? (magnitude) Starting current d) What is the starting torque for this motor? Starting torques
