Please calculate total power dissipation for following circuit
& explain briefly the steps for computing switching activity
factor and taking capacitance values.
1. Assume when En1=1 & En2 =0
2. When En=1 & En2 =2
Please Calculate Total Power Dissipation For Following Circuit Explain Briefly The Steps For Computing Switching Activ 1 (508.68 KiB) Viewed 11 times
Please Calculate Total Power Dissipation For Following Circuit Explain Briefly The Steps For Computing Switching Activ 2 (390.38 KiB) Viewed 11 times

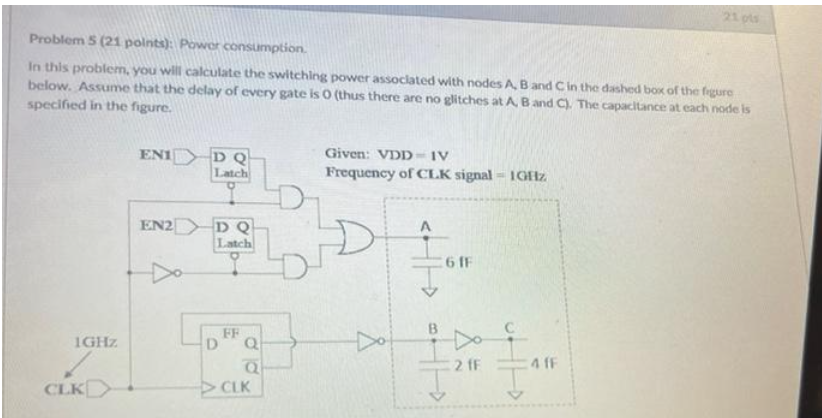

Problem 5 (21 points): Power consumption In this problem, you will calculate the switching power associated with nodes A, B and C in the dashed box of the figure below. Assume that the delay of every gate is 0 (thus there are no glitches at A, B and C). The capacitance at each node is specified in the figure. ENIDO Latch Given: VDD IV Frequency of CLK signal - 162 EN2DDO Latch A D 6 IF HH OH С 1GHz FF D Q Q so 2 FF 41 CLK ACIK

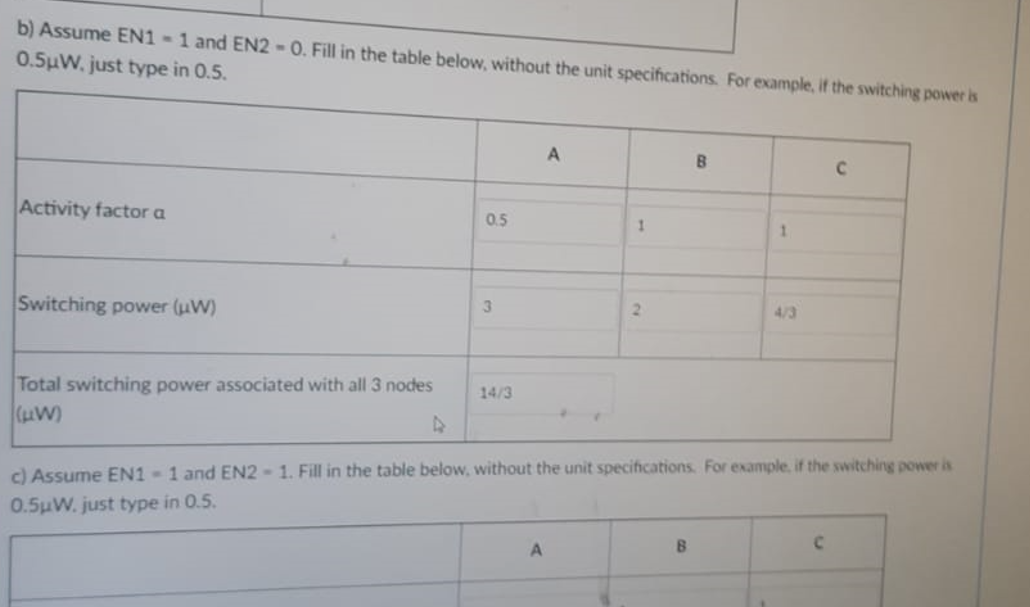

b) Assume EN1 - 1 and EN2 -0. Fill in the table below, without the unit specifications. For example, if the switching power is 0.5uW.just type in 0.5. А B с Activity factor a 0.5 1 1 Switching power (W) 3 2 ş Total switching power associated with all 3 nodes (uw) 14/3 c) Assume EN1 - 1 and EN2 - 1. Fill in the table below, without the unit specifications. For example, if the switching power is 0.5uW.just type in 0.5. A B с
