Design the transistor amplifier shown in the following Figure to be biased at IC=1 mA. Clearly show/justify your calcula

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Design the transistor amplifier shown in the following Figure to be biased at IC=1 mA. Clearly show/justify your calcula

Post by answerhappygod »

Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 1
Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 1 (50.26 KiB) Viewed 12 times
Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 2
Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 2 (50.26 KiB) Viewed 12 times
Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 3
Design The Transistor Amplifier Shown In The Following Figure To Be Biased At Ic 1 Ma Clearly Show Justify Your Calcula 3 (35.3 KiB) Viewed 12 times

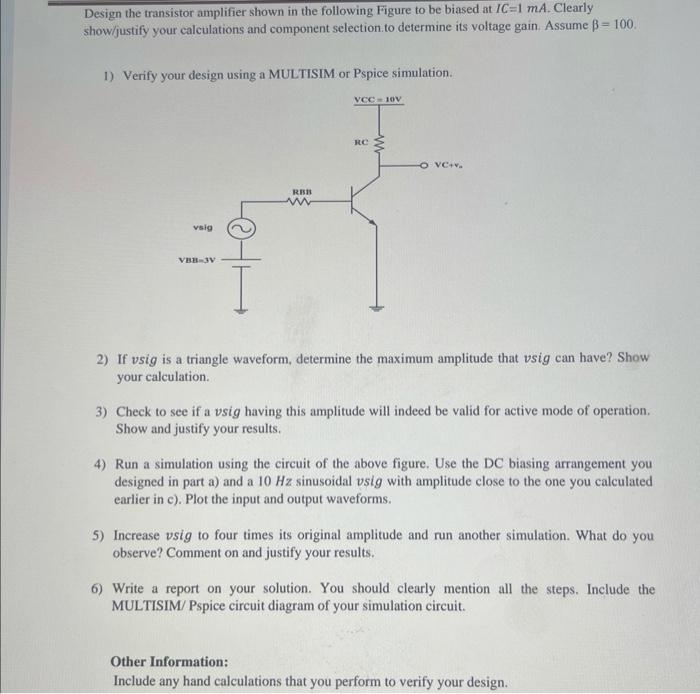

Design the transistor amplifier shown in the following Figure to be biased at IC=1 mA. Clearly show/justify your calculations and component selection to determine its voltage gain. Assume B = 100. 1) Verify your design using a MULTISIM or Pspice simulation. VCC10V RC O VC.v. RBS w vaig VBA 2) If vsig is a triangle waveform, determine the maximum amplitude that vsig can have? Show your calculation 3) Check to see if a vsig having this amplitude will indeed be valid for active mode of operation, Show and justify your results. 4) Run a simulation using the circuit of the above figure. Use the DC biasing arrangement you designed in part a) and a 10 Hz sinusoidal vsig with amplitude close to the one you calculated earlier in c). Plot the input and output waveforms. 5) Increase vsig to four times its original amplitude and run another simulation. What do you observe? Comment on and justify your results. 6) Write a report on your solution. You should clearly mention all the steps. Include the MULTISIM/ Pspice circuit diagram of your simulation circuit. Other Information: Include any hand calculations that you perform to verify your design.

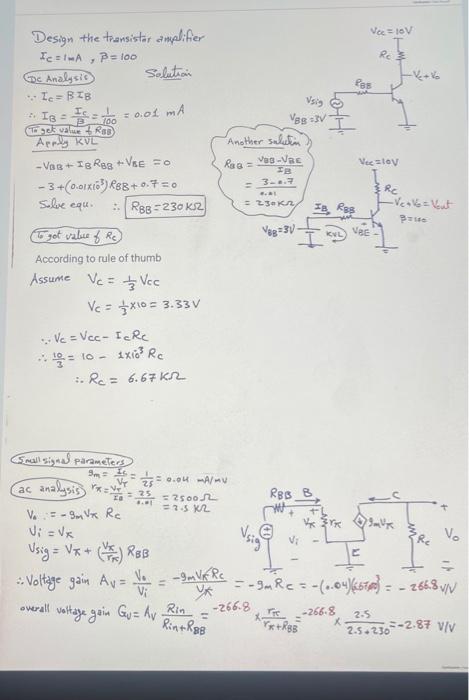

Vec 10V Rc بنا دیا ۔ Pes Vsig 30.01 mA 100 Design the transistor amelifier ICIA P=100 c Analysis Solution Ic = BIS 1 Gset value FRID Apply KUL - Voe+ Ig Reg Vse so - 3 +(0.01616) R8B+ 0.1=0 - RBB = 230 K2 To get value of Re According to rule of thumb V8g 3V Another suletin Ras - VesVRE IB 3-.. Veslov Salve equi Rc -Veals Vout 23K 3. Res Yag 30 - KL) VE ve Assume Vc = Vcc Vc = 5X10 = 3.33 V » Vc = Vcc - IRC 1x103 Rc . 3. Rc = 6.67 K12 VE 25 25 RBBB = 2500 =2.5 X2 Small signal parameters 5 ts = 2.04 mm ac analysis V. Im Vx Re x cm Vi = Vx Vo Usig = Vx+ ( 1 ) RBB Voltage gain Av = = -9MRC = -(0.04)(5TH) - - 266.8V/ Re = - Vi overall voltage gain Gu = Av Rin -266.8 -2668 w Vi ERc -Im VKRC - 2.5 Rin+RBB *+REB X 25.230--2.87 Viv
