Question 4 This circuit is an example of a V. A 4 O double-ended output O double-ended (differential) input O single-end

Post by **answerhappygod** » Fri May 20, 2022 9:55 pm

: Question 4 This Circuit Is An Example Of A V A 4 O Double Ended Output O Double Ended Differential Input O Single End 1 (78.46 KiB) Viewed 14 times

: Question 4 This Circuit Is An Example Of A V A 4 O Double Ended Output O Double Ended Differential Input O Single End 2 (76.54 KiB) Viewed 14 times

: Question 4 This Circuit Is An Example Of A V A 4 O Double Ended Output O Double Ended Differential Input O Single End 3 (83.3 KiB) Viewed 14 times

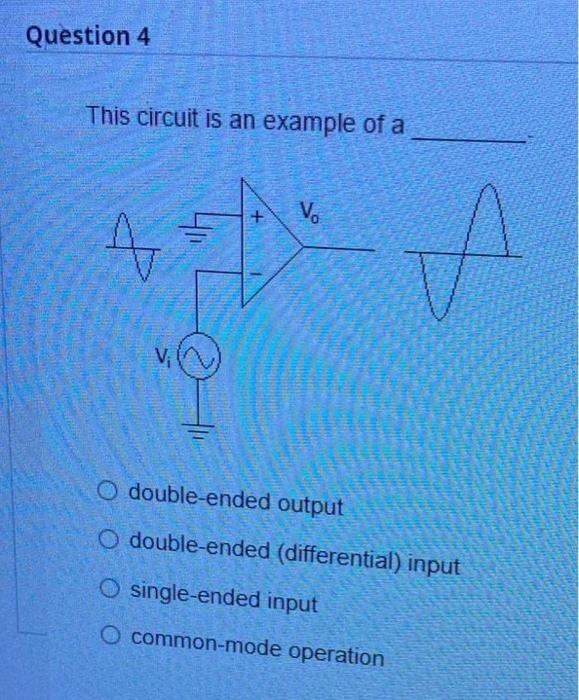

Question 4 This circuit is an example of a V. A 4 O double-ended output O double-ended (differential) input O single-ended input O common-mode operation

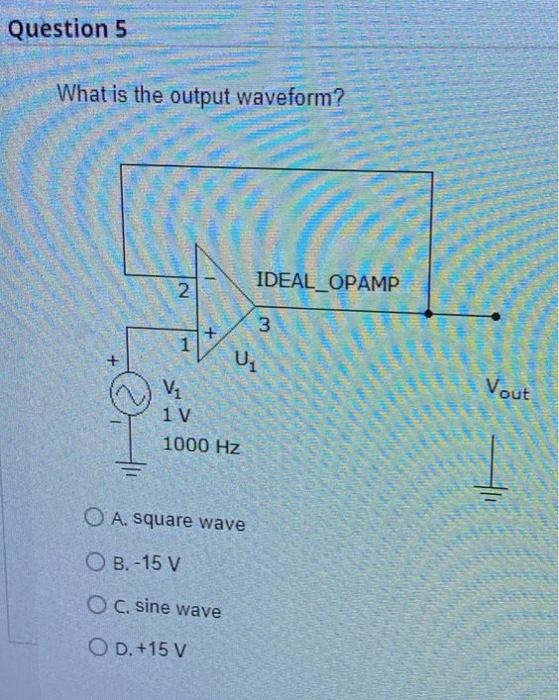

Question 5 What is the output waveform? 2 - IDEAL_OPAMP + 3 1 UL Vout V 1 v 1000 Hz O A. square wave O B.-15 V O C. sine wave OD. +15 V

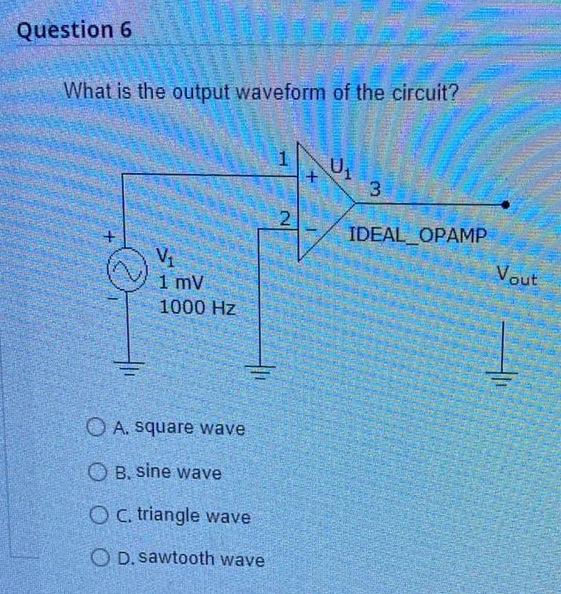

Question 6 What is the output waveform of the circuit? 1 + U1 3 N 2 + IDEAL_OPAMP Vi 1 mv 1000 Hz Vout to O A. square wave O B. sine wave O c. triangle wave O D. sawtooth wave
