Use block simplification to arrive at the overall transfer function G(s) of the system shown below + + + 1 2s 3+s 1 3 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Use block simplification to arrive at the overall transfer function G(s) of the system shown below + + + 1 2s 3+s 1 3 1

Post by answerhappygod »

Use Block Simplification To Arrive At The Overall Transfer Function G S Of The System Shown Below 1 2s 3 S 1 3 1 1

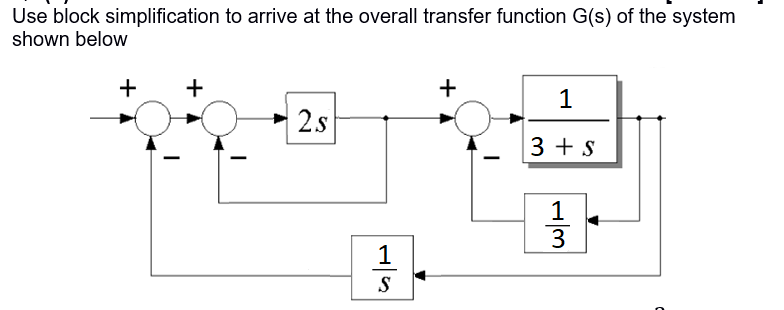

Use Block Simplification To Arrive At The Overall Transfer Function G S Of The System Shown Below 1 2s 3 S 1 3 1 1 (20.96 KiB) Viewed 24 times
Use block simplification to arrive at the overall transfer function G(s) of the system shown below + + + 1 2s 3+s 1 3 1 S
