Pts) 2. For the digital computer specifications and the seven-cycle hardwired control unit designed in the class, answer

[answerhappygod]

Pts 2 For The Digital Computer Specifications And The Seven Cycle Hardwired Control Unit Designed In The Class Answer 1 (27.12 KiB) Viewed 7 times

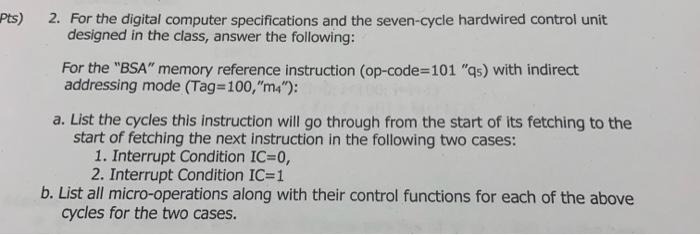

Pts) 2. For the digital computer specifications and the seven-cycle hardwired control unit designed in the class, answer the following: For the "BSA" memory reference instruction (op-code=101 "qs) with indirect addressing mode (Tag=100,"m4"): a. List the cycles this instruction will go through from the start of its fetching to the start of fetching the next instruction in the following two cases: 1. Interrupt Condition IC=0, 2. Interrupt Condition IC=1 b. List all micro-operations along with their control functions for each of the above cycles for the two cases.
