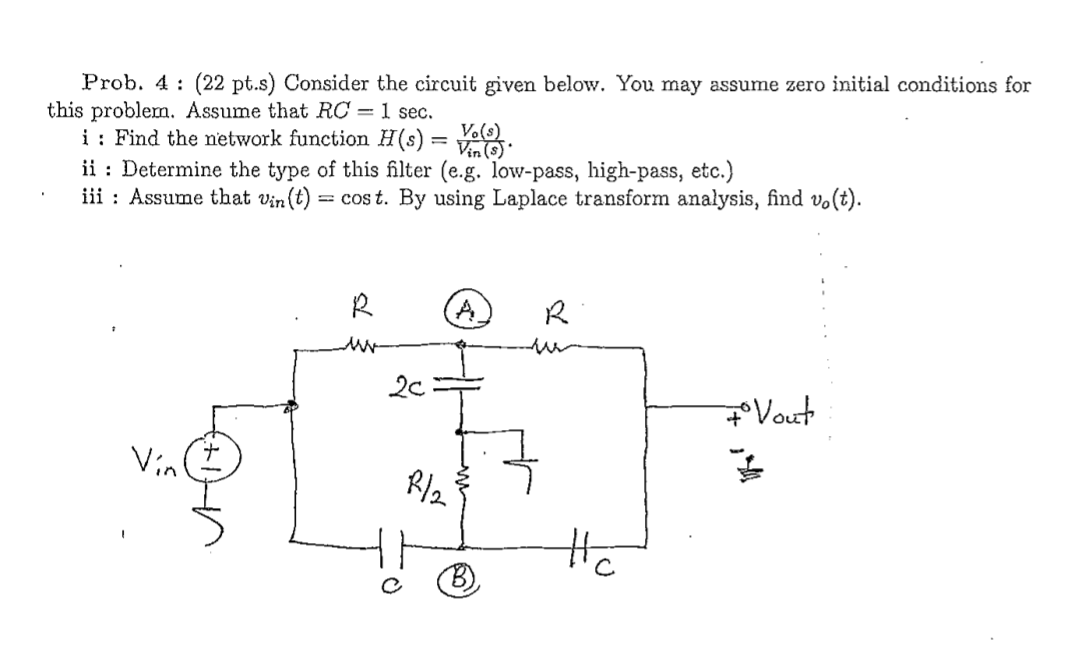

Prob. 4: (22 pt.s) Consider the circuit given below. You may assume zero initial conditions for this problem. Assume that RC = 1 sec. i : Find the network function H(s) = n. Vo(s) ii : Determine the type of this filter (e.g. low-pass, high-pass, etc.) iii : Assume that Vin(t) = cost. By using Laplace transform analysis, find vo(t). R A R 2c ㅔ to Vout Vin R/2 th Hc B)
