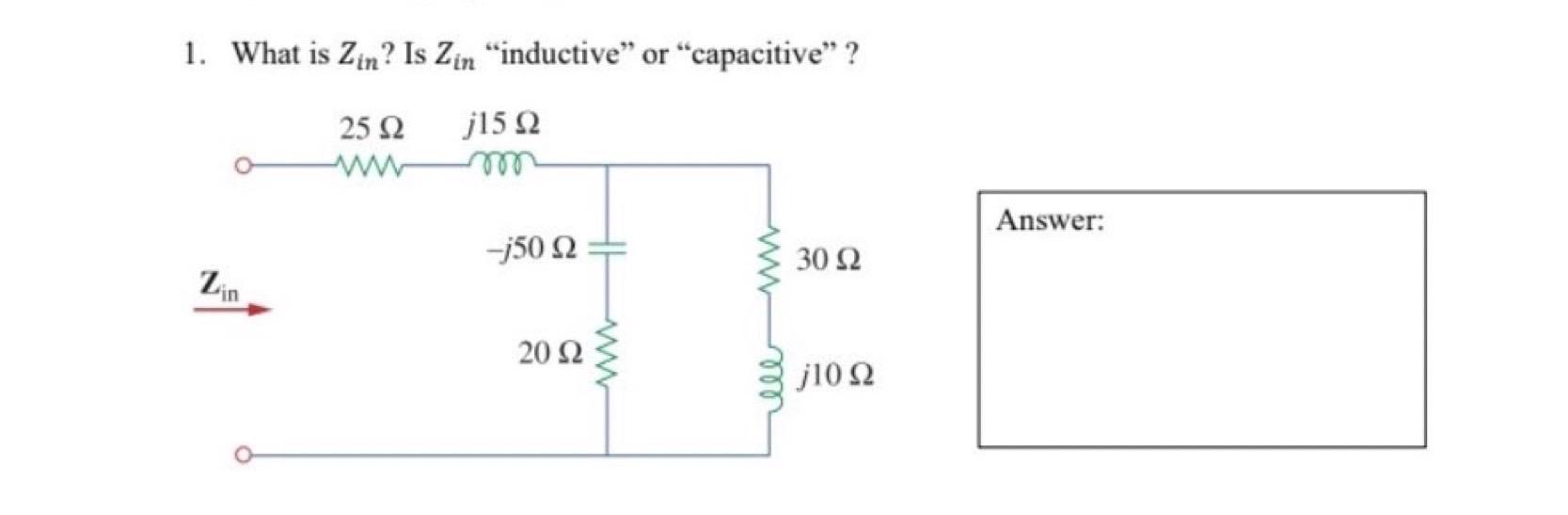

1. What is Zin ? Is Zin
"inductive" or "capacitive" ?

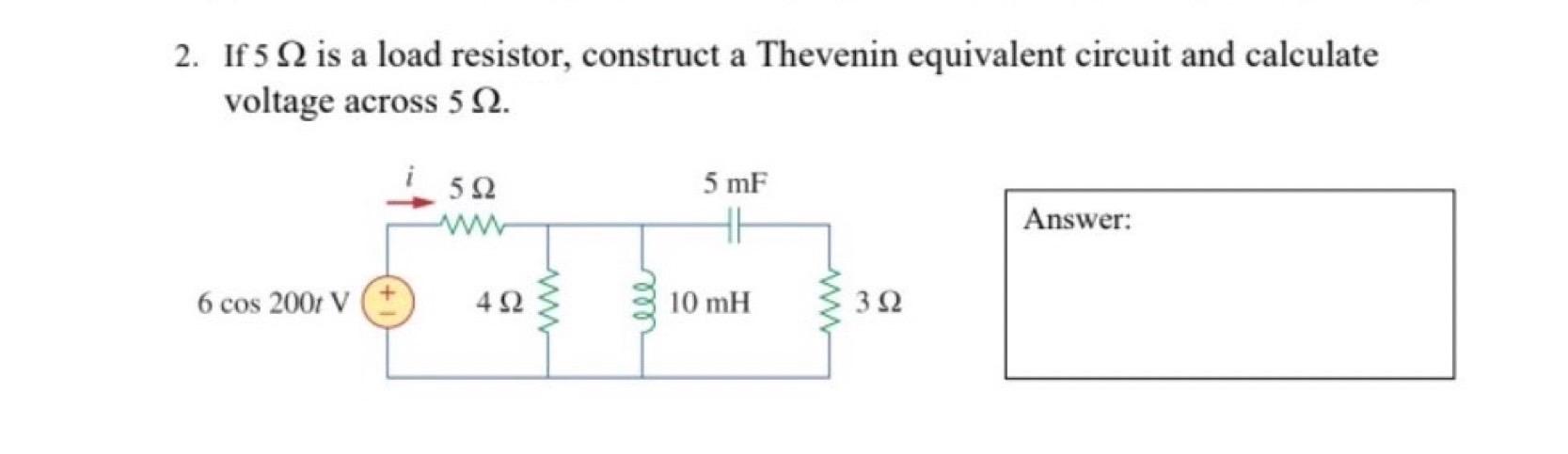

2. If 5 Ω is a load resistor, construct a Thevenin
equivalent circuit and calculate voltage across 5 Ω.
3. The switch has been closed for a long time and it opens at t
= 0. Find v(t) for t ≥ 0.

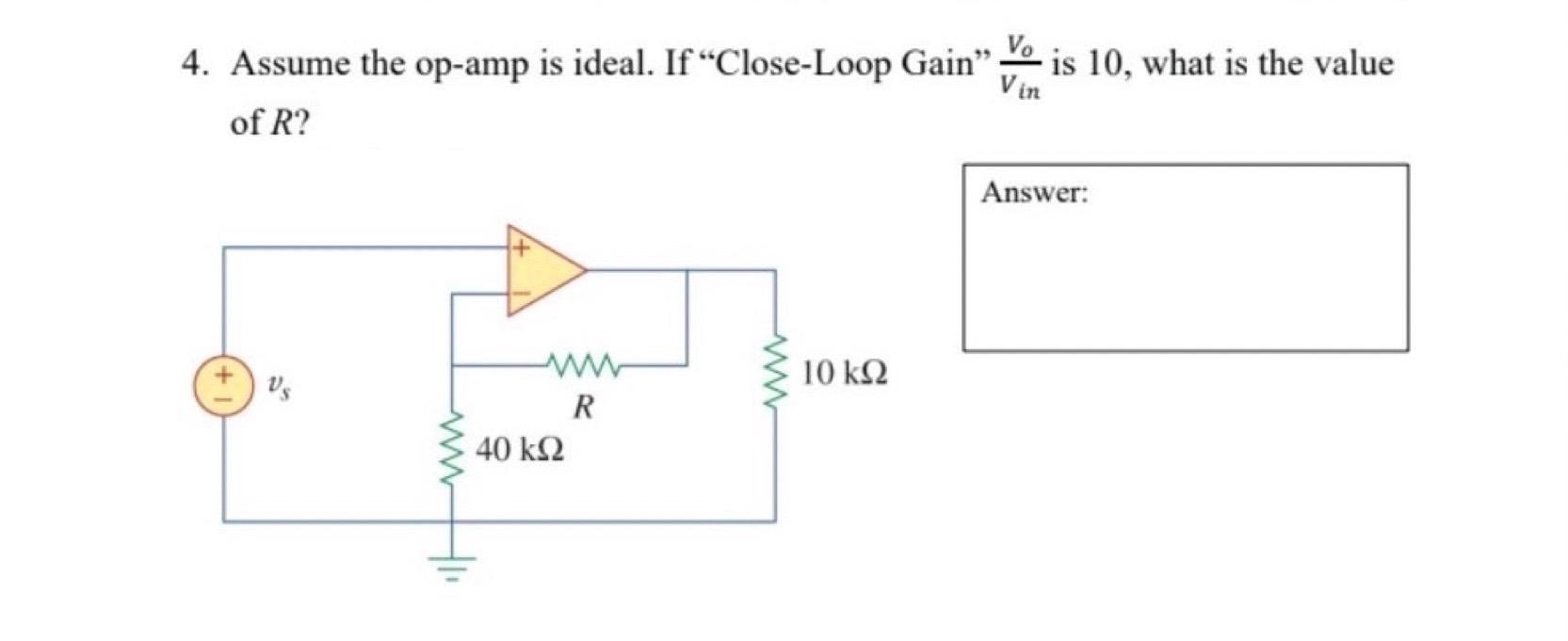

4. Assume the op-amp is ideal. If "Close-Loop Gain"
vo / vin is 10, what is the value of
R?
- 1 (33.68 KiB) Viewed 15 times
- 2 (37.52 KiB) Viewed 15 times
- 3 (41.93 KiB) Viewed 15 times
- 4 (43.94 KiB) Viewed 15 times
2. If 5 2 is a load resistor, construct a Thevenin equivalent circuit and calculate voltage across 5 12. 5 mF 512 WWW Answer: 6 cos 2001 V 492 10 mH 322
3. The switch has been closed for a long time and it opens at t = 0. Find v(t) for t> 0. 1 = 0 Answer: 10 k92 g 40 V + 2 k22 v (1) 40 uF
4. Assume the op-amp is ideal. If “Close-Loop Gain" is 10, what is the value Vin of R? Answer: Us www 10 K12 W R 40 ks2 ww
