2. A4 pole, 60 Hz, 25 kV, 700 MVA synchronous generator with synchronous reactance of 0.5 ohm. Voltage at the terminals

Post by answerhappygod »

2 A4 Pole 60 Hz 25 Kv 700 Mva Synchronous Generator With Synchronous Reactance Of 0 5 Ohm Voltage At The Terminals 1
2 A4 Pole 60 Hz 25 Kv 700 Mva Synchronous Generator With Synchronous Reactance Of 0 5 Ohm Voltage At The Terminals 1 (24.19 KiB) Viewed 11 times

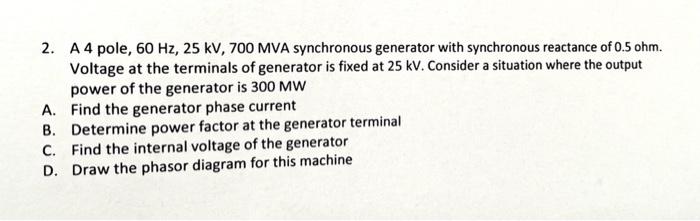

2. A4 pole, 60 Hz, 25 kV, 700 MVA synchronous generator with synchronous reactance of 0.5 ohm. Voltage at the terminals of generator is fixed at 25 kV. Consider a situation where the output power of the generator is 300 MW A. Find the generator phase current B. Determine power factor at the generator terminal C. Find the internal voltage of the generator D. Draw the phasor diagram for this machine
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
