R(s) G(s) Y(s) Consider a unity feedback system shown above with bode plot for forward transfer function (G(S)) shown be

[answerhappygod]

R S G S Y S Consider A Unity Feedback System Shown Above With Bode Plot For Forward Transfer Function G S Shown Be 1 (65.72 KiB) Viewed 30 times

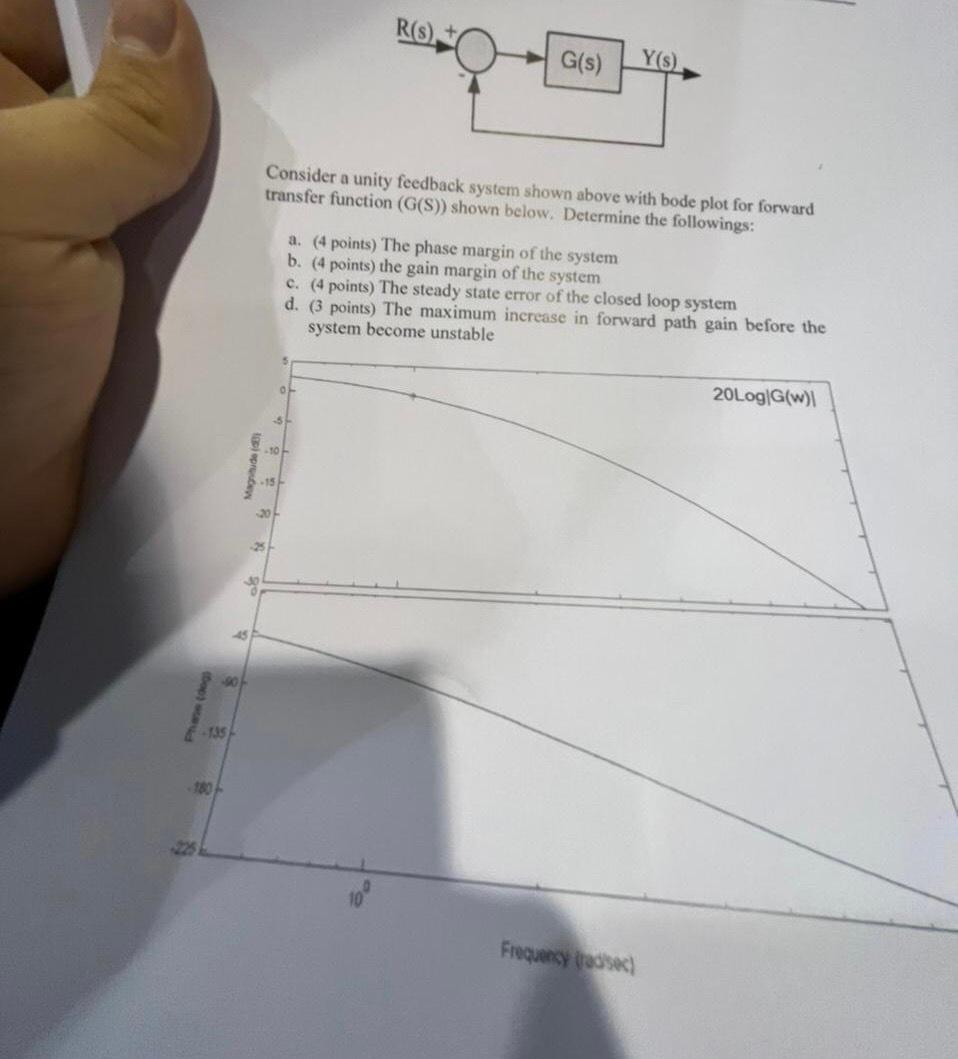

R(s) G(s) Y(s) Consider a unity feedback system shown above with bode plot for forward transfer function (G(S)) shown below. Determine the followings: a. (4 points) The phase margin of the system b. (4 points) the gain margin of the system c. (4 points) The steady state error of the closed loop system d. (3 points) The maximum increase in forward path gain before the system become unstable 0 20Log G(w) Maide .15 30 -135 Frequency
