Consider the feedback system shown in Figure A. The value of K. co that the closed loop system poles are located on the

[answerhappygod]

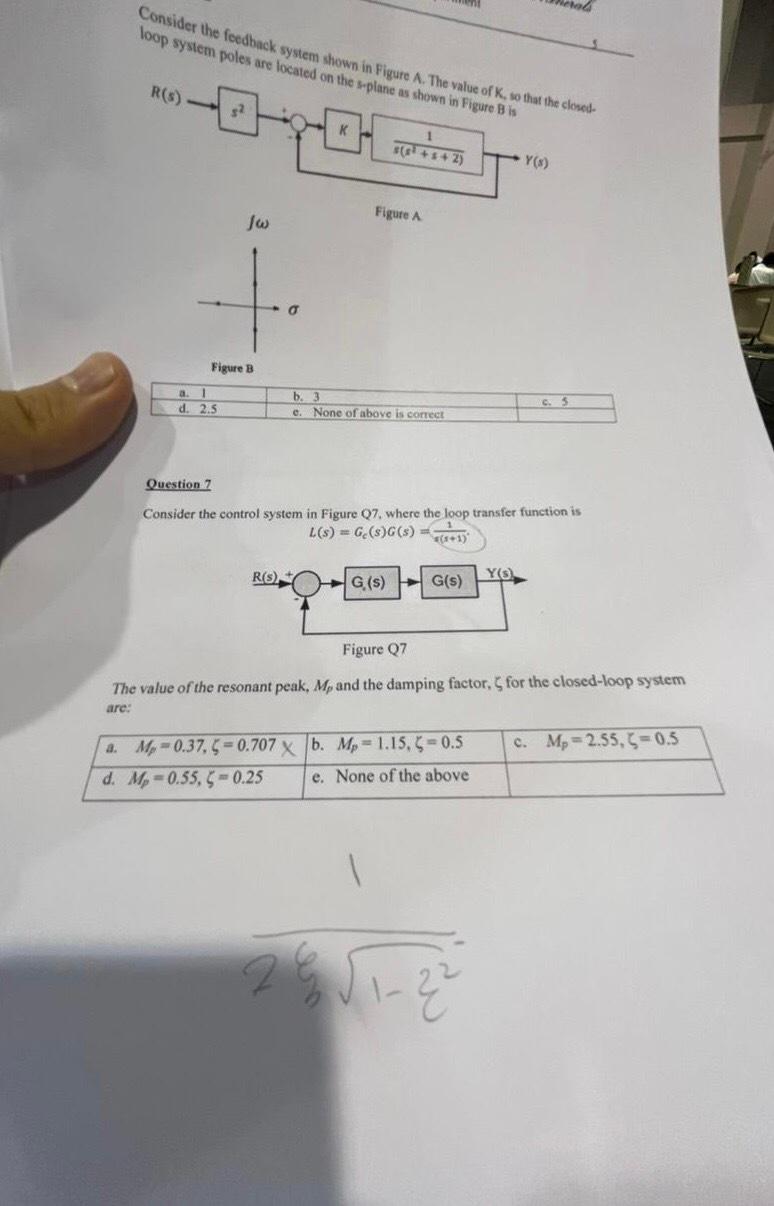

Consider The Feedback System Shown In Figure A The Value Of K Co That The Closed Loop System Poles Are Located On The 1 (64.76 KiB) Viewed 12 times

Consider the feedback system shown in Figure A. The value of K. co that the closed loop system poles are located on the plane as shown in Figure B is R(S) - Y(8) Figure A Jw o Figure B a. d. 2.5 b. e. None of above is correct Question 7 Consider the control system in Figure Q7, where the loop transfer function is L(s) == Ge(s)G(s) R(S) Y(S. G(s) G(s) Figure Q7 The value of the resonant peak, M, and the damping factor, 5 for the closed-loop system are: c. M. = 2.55, 5=0.5 a. My = 0.37,5 = 0.707 x b. Mo = 1.15, 6 -0.5 d. My = 0.55, 5 -0.25 e. None of the above
