Question 17 2 Pts Consider The Following System 8 S 1 G S S 2 2 3s Determine The Frequency At Which The Gain 1 (33.59 KiB) Viewed 18 times
Question 17 2 Pts Consider The Following System 8 S 1 G S S 2 2 3s Determine The Frequency At Which The Gain 2 (25.42 KiB) Viewed 18 times

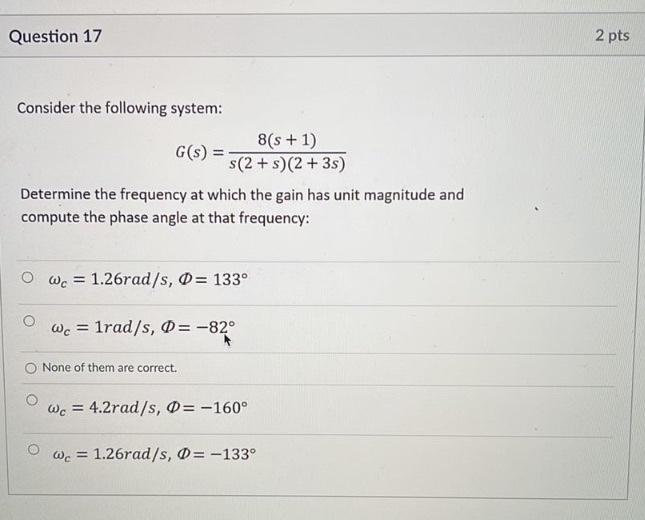

Question 17 2 pts Consider the following system: 8(s + 1) G(s) = s(2+)(2 + 3s) Determine the frequency at which the gain has unit magnitude and compute the phase angle at that frequency: Owc = 1.26rad/s, O= 133 = wc = 1rad/s, Q = -82° None of them are correct. wc = 4.2rad/s, O= -160° wc = 1.26rad/s, O = -133°

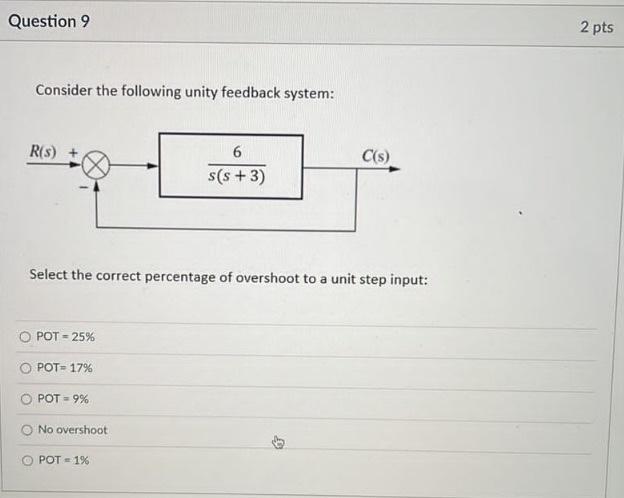

Question 9 2 pts Consider the following unity feedback system: R(S) 6 s(s+3) C(s) Select the correct percentage of overshoot to a unit step input: POT - 25% POT 17% POT -9% No overshoot POT = 1%
