Problem 1: (15 points) Electrical Engineering Department um and Menerals & Consider the unity feedback system shown belo

[answerhappygod]

Problem 1 15 Points Electrical Engineering Department Um And Menerals Consider The Unity Feedback System Shown Belo 1 (69.63 KiB) Viewed 14 times

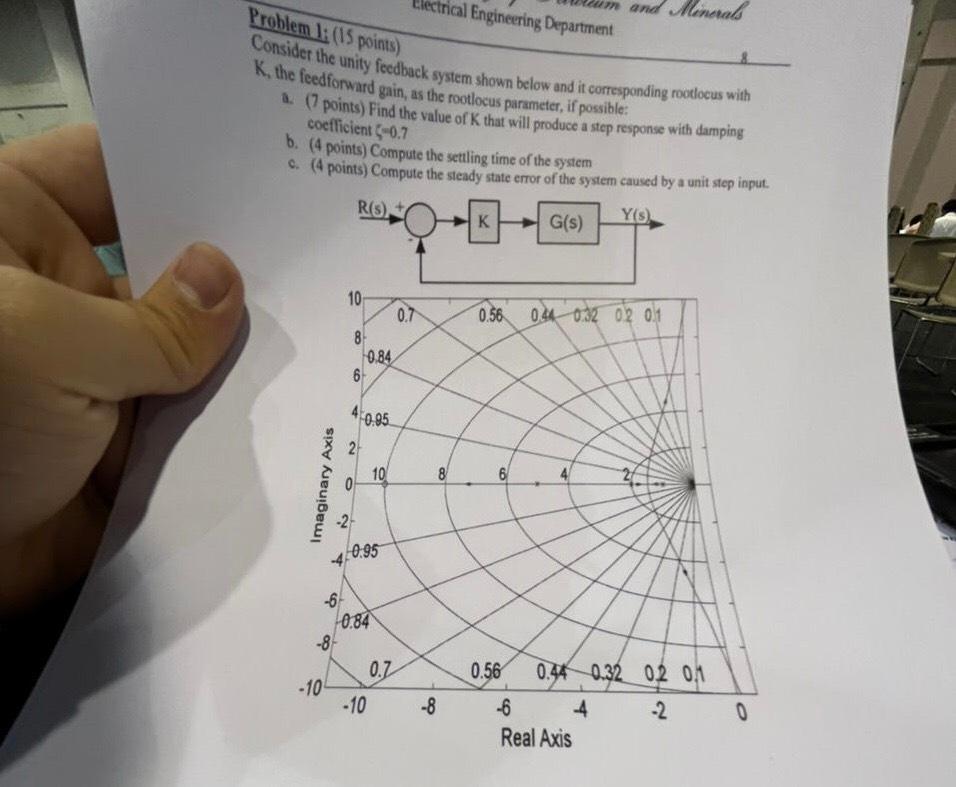

Problem 1: (15 points) Electrical Engineering Department um and Menerals & Consider the unity feedback system shown below and it corresponding rootlocus with K. the feedforward gain, as the rootlocus parameter , if possible: 1. (7 points) Find the value of K that will produce a step response with damping coefficient (-0.7 b. (4 points) Compute the settling time of the system c. (4 points) Compute the steady state error of the system caused by a unit step input. R(S) YIS K G(s) 10 0,7 0.56 044 0.32 02 0.1 8 0.84 6 4.0.95 2 2 10 8 6 Imaginary Axis 0 -2 0.95 -6 0.84 8 0.Z 0.56 0.44 0.32 02 OM -10 -10 -8 -2 0 -6 4 Real Axis
