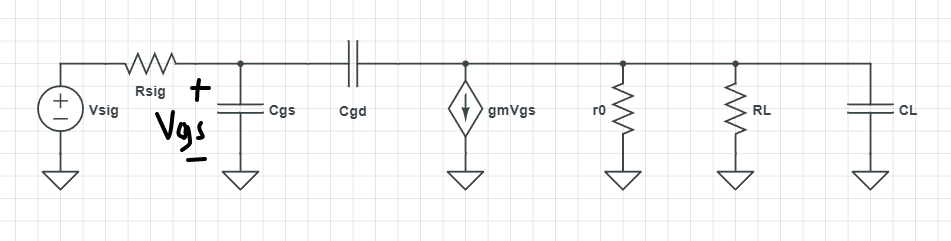

W Rsig + +1 Vsig Cgs Cgd gmVgs ro RL CL Vgs

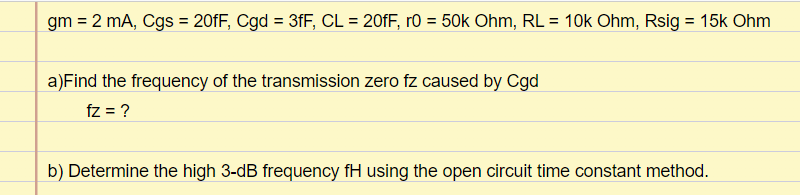

gm = 2 mA, Cgs = 20fF, Cgd = 3FF, CL = 20fF, ro = 50k Ohm, RL = 10k Ohm, Rsig = 15k Ohm a)Find the frequency of the transmission zero fz caused by Cgd fz = ? b) Determine the high 3-dB frequency fH using the open circuit time constant method.
