EXAMPLE 7.4 Determine the following for the network of Fig. 7.21: a. Id, and VGS, +16V b. VD c. Vs d. Vps e. Vpg RD 2.4k

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

EXAMPLE 7.4 Determine the following for the network of Fig. 7.21: a. Id, and VGS, +16V b. VD c. Vs d. Vps e. Vpg RD 2.4k

Post by answerhappygod »

Example 7 4 Determine The Following For The Network Of Fig 7 21 A Id And Vgs 16v B Vd C Vs D Vps E Vpg Rd 2 4k 1
Example 7 4 Determine The Following For The Network Of Fig 7 21 A Id And Vgs 16v B Vd C Vs D Vps E Vpg Rd 2 4k 1 (63.59 KiB) Viewed 24 times

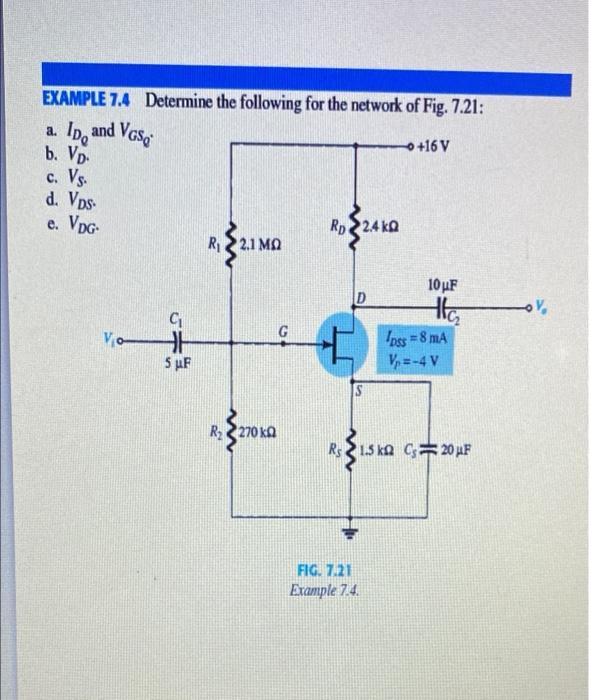

EXAMPLE 7.4 Determine the following for the network of Fig. 7.21: a. Id, and VGS, +16V b. VD c. Vs d. Vps e. Vpg RD 2.4kQ R 2.1 MO D 10uF ta Ines = 8 mA V=-4 V Сі 카 Vio G G 5 uf S R: 270 k W Režisk Rs 1.5 kA 20 uF FIGU 7.21 Example 7.4.
