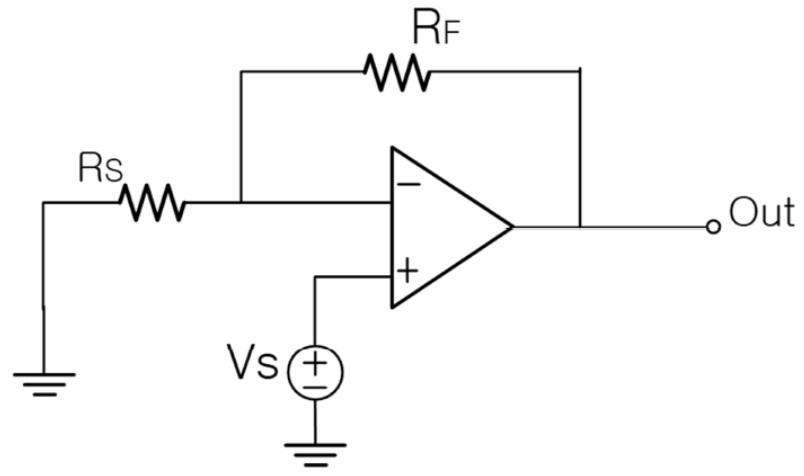

In the following feedback circuit, the common voltage of Vs is
0.9V and Rs = RF = 50KOhm. (RF = 50K, RS = 50K, Ri = 100E6, Ro =
50, µ = 1000V/V)
- In The Following Feedback Circuit The Common Voltage Of Vs Is 0 9v And Rs Rf 50kohm Rf 50k Rs 50k Ri 100e 1 (17.45 KiB) Viewed 11 times
(1) Check the frequency response of Vout/Vs.
(2) Compare the -3dB frequency with no feedback.
RE Rs W . Out + Vsť
