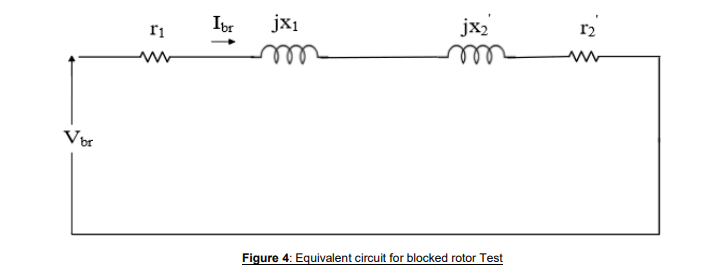

Ibs Jx1 Jx2 R1 W R2 W Vor Figure 4 Equivalent Circuit For Blocked Rotor Test 1 (16.24 KiB) Viewed 23 times
When r2/s is split into a series connection of r2’ and
r2'[(1/s)-1] in the rotor equivalent circuit of an induction
machine, what do the power absorbed by the individual resistors
physically represent?
s = slip of the IM
Ibs jx1 jx2 r1 w r2 w Vor Figure 4: Equivalent circuit for blocked rotor Test
