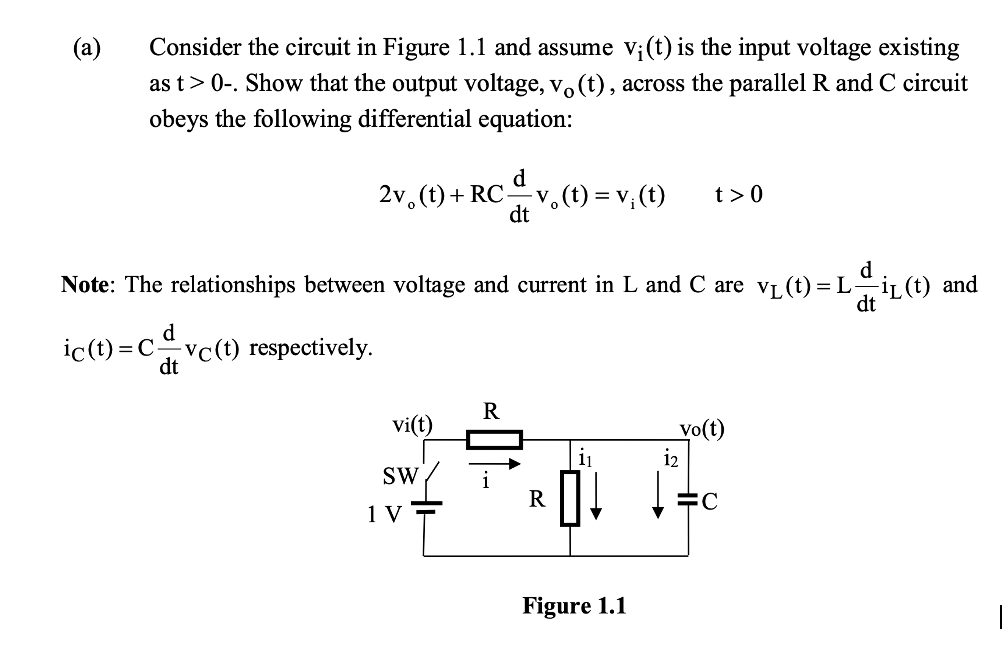

(a) Consider the circuit in Figure 1.1 and assume vi(t) is the input voltage existing as t> 0-. Show that the output voltage, vo(t), across the parallel R and C circuit obeys the following differential equation: 2v.(t) +RCv.(t)= v;(t) dt V t>O d Note: The relationships between voltage and current in L and C are vl(t)=Lil(t) and dt ic(t)= vc(t) respectively. dt R vi(t) vo(t) 12 11 SW R C 1 VT Figure 1.1 1
