Digital Logic Design 1 40 Points Given The Following Logic Diagram A 410 121 F Tuan 120 Kur B Ware Figure 1 A Writ 1 (50.48 KiB) Viewed 14 times
please do it in 30 minutes please urgently... I'll give you up thumb definitely

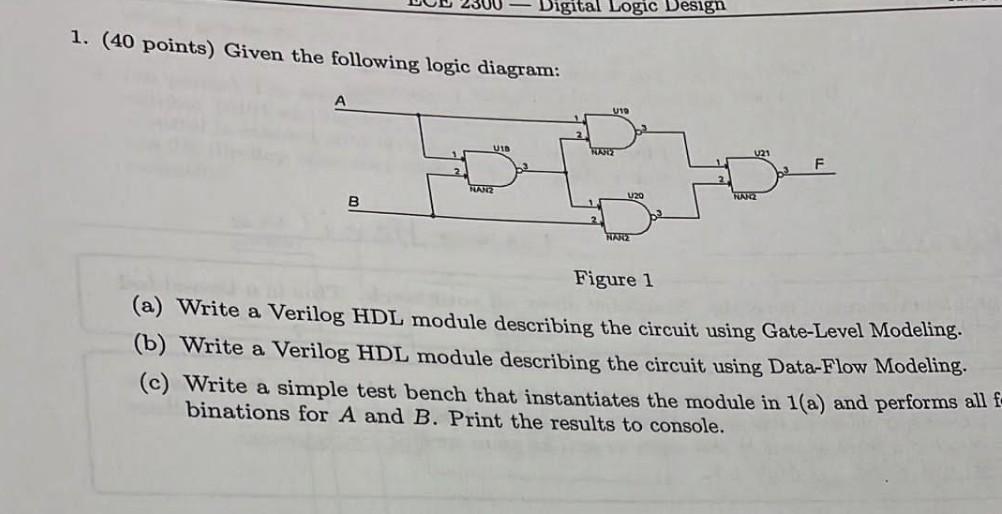

Digital Logic Design 1. (40 points) Given the following logic diagram: A 410 121 F TUAN 120 KUR B WARE Figure 1 (a) Write a Verilog HDL module describing the circuit using Gate-Level Modeling. (b) Write a Verilog HDL module describing the circuit using Data-Flow Modeling. (c) Write a simple test bench that instantiates the module in 1(a) and performs all f- binations for A and B. Print the results to console.
