4. (15 points) For the amplifier given below, the midband gain is given as 20dB. The transistor pa- rameters are given a

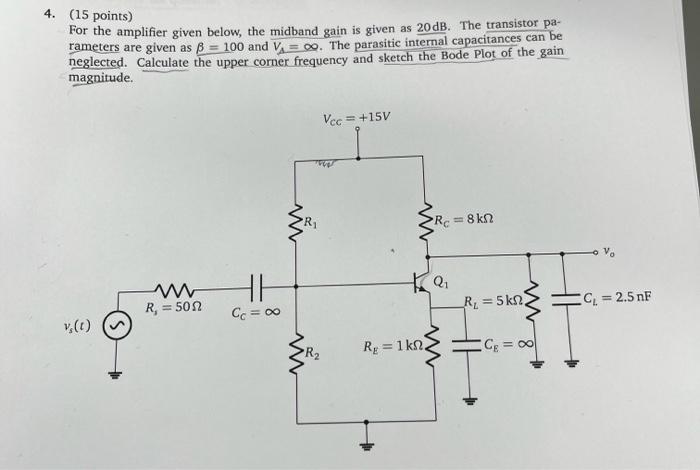

4. (15 points) For the amplifier given below, the midband gain is given as 20dB. The transistor pa- rameters are given as = 100 and V = 0. The parasitic internal capacitances can be neglected. Calculate the upper corner frequency and sketch the Bode Plot of the gain magnitude. Vcc = +15V Ri Rc =8k12 TH Q R = 502 _R, = 5kΩ. CC = 2.5 nF W Cc = oo (1) Rg = 1ks Ce = 0 W
