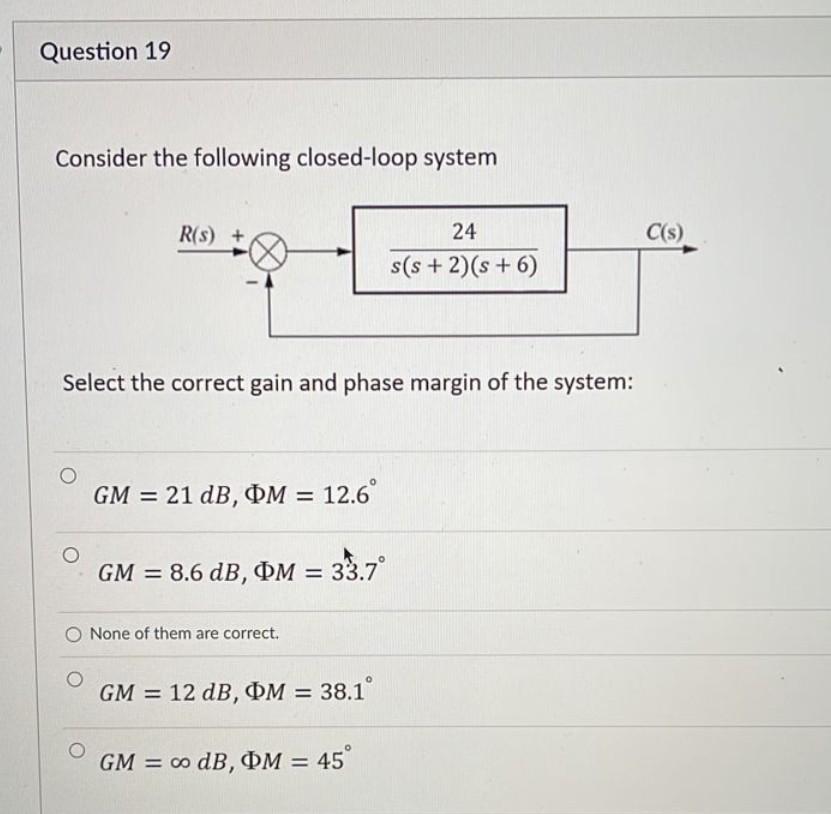

please do it in 30 minutes please urgently... I'll give you up thumb definitely Question 19 Consider the following closed-loop system R(S) + s C(s) 24 s(s+2)(s +6) Select the correct gain and phase margin of the system: 0 GM = 21 dB, ØM = 12.6° GM = 8.6 dB, ØM = 33.7° O None of them are correct. GM = 12 dB, OM = 38.1 O GM = 0 dB, ØM = 45°
