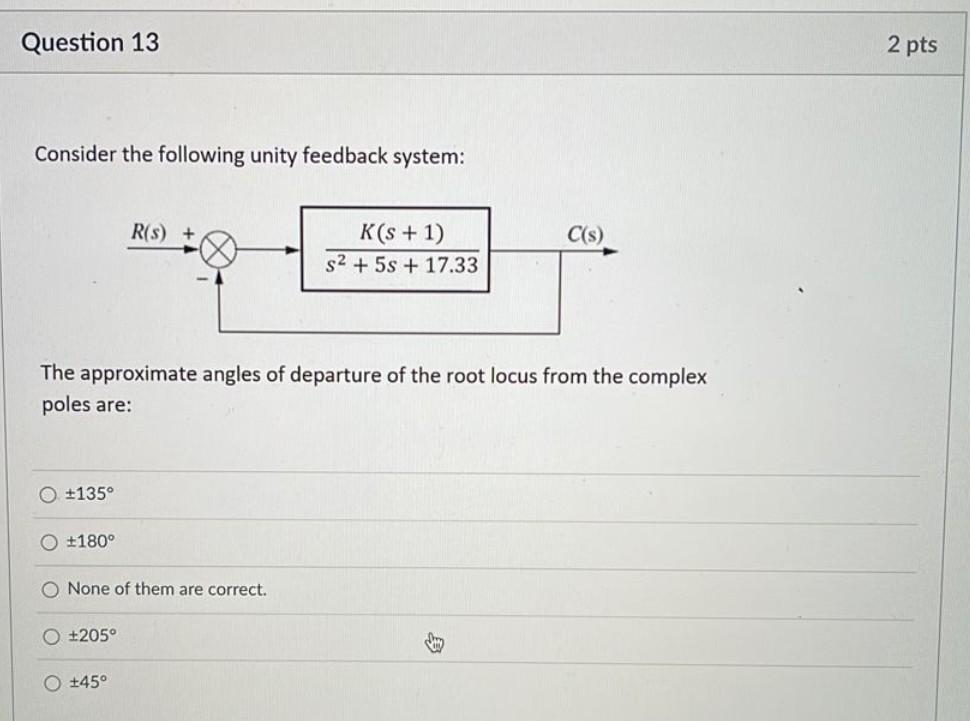

Question 13 2 Pts Consider The Following Unity Feedback System R S C S K S 1 S2 5s 17 33 The Approximate Ang 1 (51.81 KiB) Viewed 30 times
please do it in 30 minutes please urgently... I'll give you up thumb definitely Question 13 2 pts Consider the following unity feedback system: R(s) + C(s) K(s + 1) S2 + 5s + 17.33 The approximate angles of departure of the root locus from the complex poles are: O +135° +180° O None of them are correct. +205° O +45°
