Question 12 2 pts Select the correct statement about the root locus of the following system: R(S) C(s) K(s + 1) S2 + 5s

[answerhappygod]

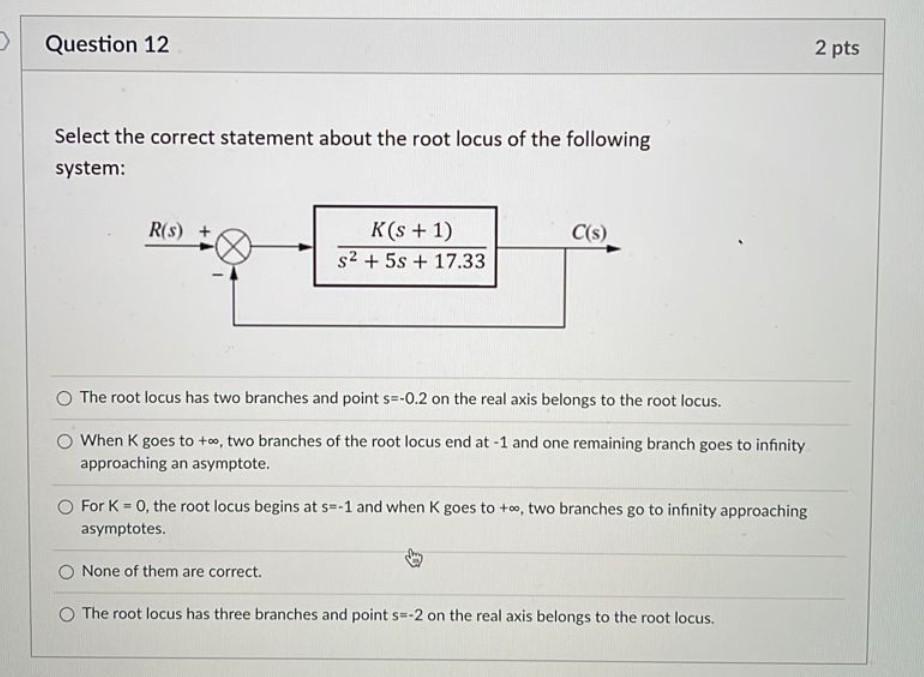

Question 12 2 Pts Select The Correct Statement About The Root Locus Of The Following System R S C S K S 1 S2 5s 1 (56.79 KiB) Viewed 17 times

please do it in 30 minutes please urgently... I'll give you up thumb definitely
Question 12 2 pts Select the correct statement about the root locus of the following system: R(S) C(s) K(s + 1) S2 + 5s + 17.33 The root locus has two branches and points=-0.2 on the real axis belongs to the root locus. When K goes to +o, two branches of the root locus end at -1 and one remaining branch goes to infinity approaching an asymptote. For k = 0, the root locus begins at să-1 and when K goes to +o, two branches go to infinity approaching asymptotes. None of them are correct. The root locus has three branches and points=-2 on the real axis belongs to the root locus.
