Problem 3 Given that the system function of a causal system is given by 6z2 – 10z + 2 Hz) 22 – 3z + 2 (a) Use the MATLAB

[answerhappygod]

Problem 3 Given That The System Function Of A Causal System Is Given By 6z2 10z 2 Hz 22 3z 2 A Use The Matlab 1 (28.49 KiB) Viewed 42 times

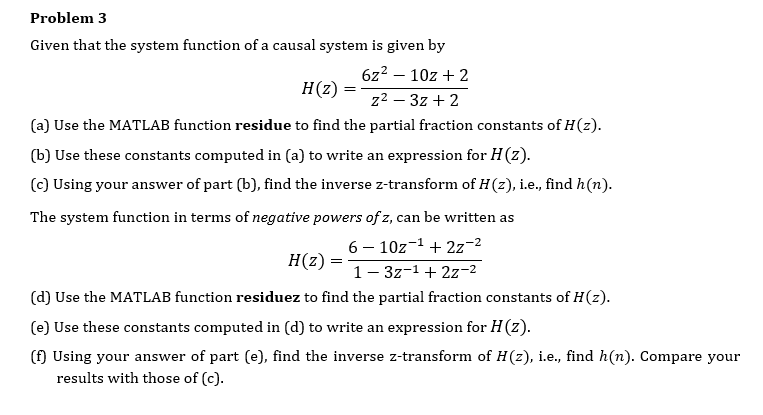

Problem 3 Given that the system function of a causal system is given by 6z2 – 10z + 2 Hz) 22 – 3z + 2 (a) Use the MATLAB function residue to find the partial fraction constants of H(2). (b) Use these constants computed in (a) to write an expression for H(2). (c) Using your answer of part (b), find the inverse z-transform of H(2), i.e., find h(n). The system function in terms of negative powers of z, can be written as 6 - 102-1 + 2z-2 Hz) 1-32-1 + 2z-2 (d) Use the MATLAB function residuez to find the partial fraction constants of H(2). (e) Use these constants computed in (d) to write an expression for H(2). (f) Using your answer of part (e), find the inverse z-transform of Hz), i.e., find h(n). Compare your results with those of (c). =
