For the circuit in Figure Q.3, vs (t) = 20 sin (1000 + 20°) V (a) Calculate the voltage Vc in phasor form. (b) Calculate

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the circuit in Figure Q.3, vs (t) = 20 sin (1000 + 20°) V (a) Calculate the voltage Vc in phasor form. (b) Calculate

Post by answerhappygod »

For The Circuit In Figure Q 3 Vs T 20 Sin 1000 20 V A Calculate The Voltage Vc In Phasor Form B Calculate 1
For The Circuit In Figure Q 3 Vs T 20 Sin 1000 20 V A Calculate The Voltage Vc In Phasor Form B Calculate 1 (26.41 KiB) Viewed 25 times

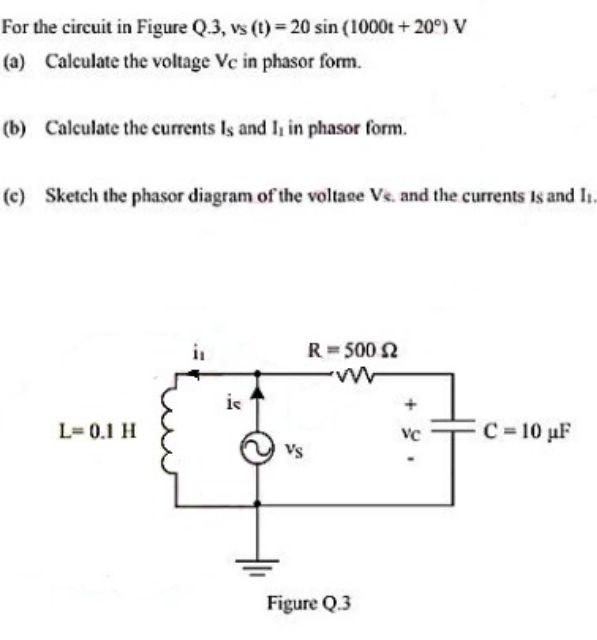

For the circuit in Figure Q.3, vs (t) = 20 sin (1000 + 20°) V (a) Calculate the voltage Vc in phasor form. (b) Calculate the currents Is and 1, in phasor form. (c) Sketch the phasor diagram of the voltage Ve and the currents is and I, R = 500 52 w is L=0.1 H VC 7 C=10 uF Vs Figure Q.3
