= 1. (12 pts) Design a rectangular microstrip patch antenna so that it will resonate at 2 GHz. Assume a lossless substra

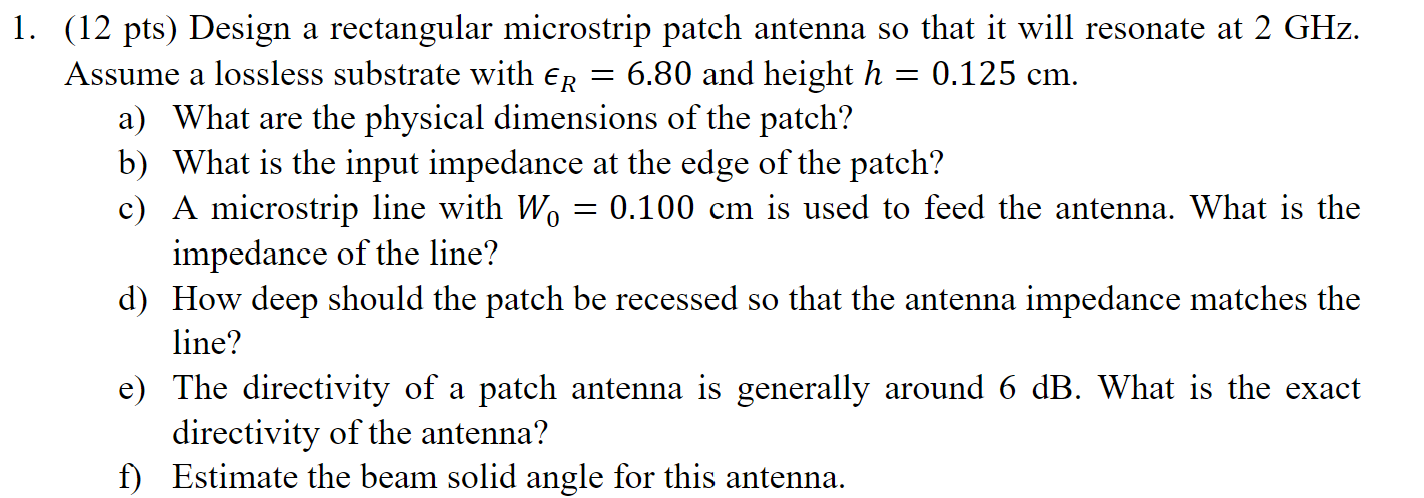

= 1. (12 pts) Design a rectangular microstrip patch antenna so that it will resonate at 2 GHz. Assume a lossless substrate with Er = 6.80 and height h = 0.125 cm. a) What are the physical dimensions of the patch? b) What is the input impedance at the edge of the patch? c) A microstrip line with Wo = 0.100 cm is used to feed the antenna. What is the impedance of the line? d) How deep should the patch be recessed so that the antenna impedance matches the line? e) The directivity of a patch antenna is generally around 6 dB. What is the exact directivity of the antenna? f) Estimate the beam solid angle for this antenna.
