Note - You are required to give step by step working out with all the formulae used and include the diagrams as appropri

[answerhappygod]

Note You Are Required To Give Step By Step Working Out With All The Formulae Used And Include The Diagrams As Appropri 1 (43.31 KiB) Viewed 32 times

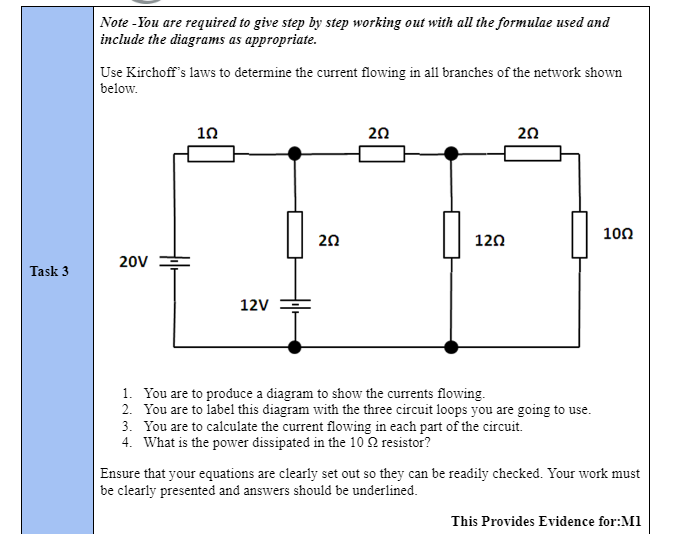

Note - You are required to give step by step working out with all the formulae used and include the diagrams as appropriate. Use Kirchoff's laws to determine the current flowing in all branches of the network shown below. 10 20 20 20 120 100 Task 3 20v 12V 1. You are to produce a diagram to show the currents flowing. 2. You are to label this diagram with the three circuit loops you are going to use. 3. You are to calculate the current flowing in each part of the circuit. 4. What is the power dissipated in the 100 resistor? Ensure that your equations are clearly set out so they can be readily checked. Your work must be clearly presented and answers should be underlined. This Provides Evidence for:MI
