= The network shown below consists of two lossless transmission lines of lengths 11 l2 = 1/2 where 2 is the guide wavele

Post by answerhappygod »

The Network Shown Below Consists Of Two Lossless Transmission Lines Of Lengths 11 L2 1 2 Where 2 Is The Guide Wavele 1
The Network Shown Below Consists Of Two Lossless Transmission Lines Of Lengths 11 L2 1 2 Where 2 Is The Guide Wavele 1 (128.2 KiB) Viewed 11 times

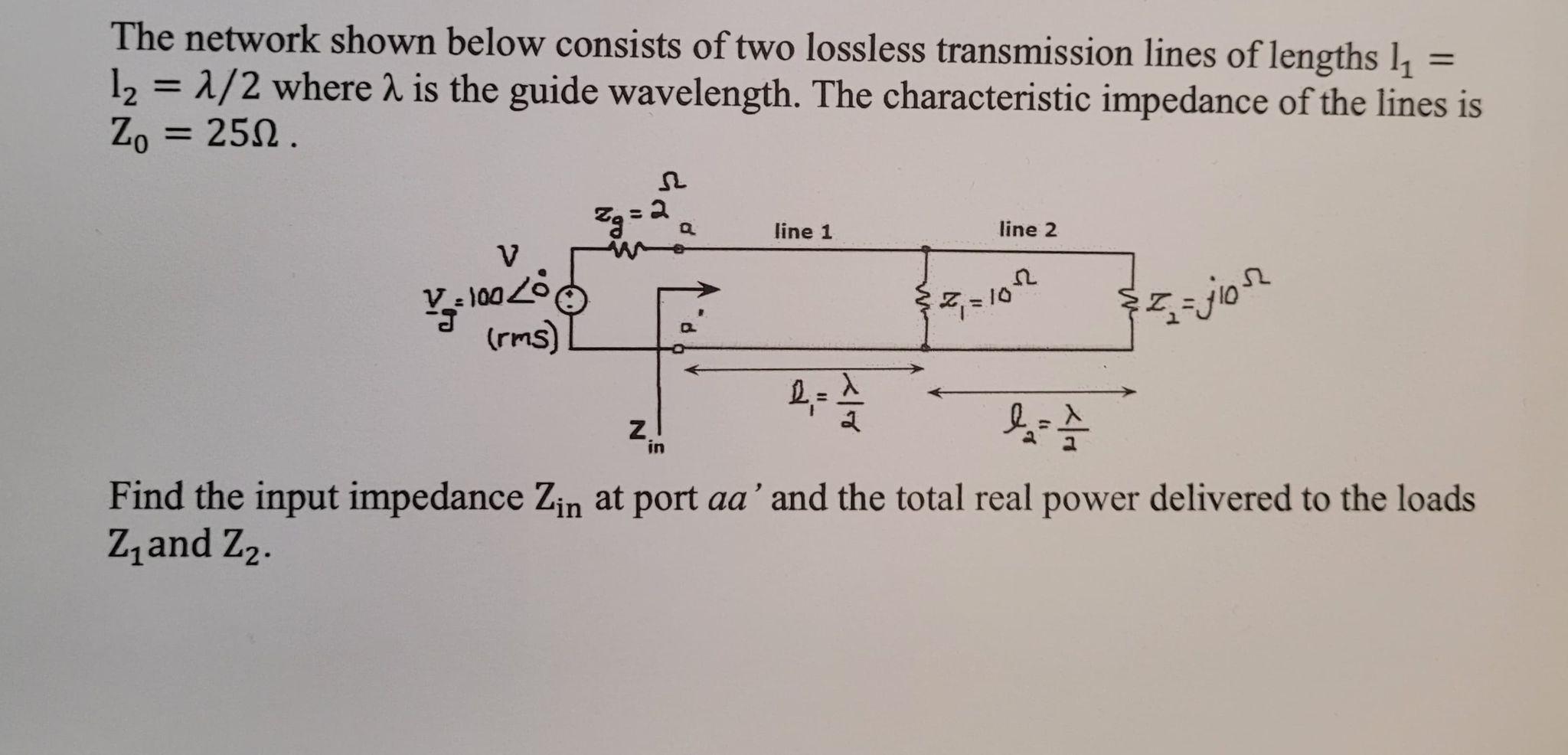

= The network shown below consists of two lossless transmission lines of lengths 11 l2 = 1/2 where 2 is the guide wavelength. The characteristic impedance of the lines is Zo = 2512 . = 2 line 1 line 2 V Y 100 Lod 2,= 10 irms) Bajor A- Z in Find the input impedance Zin at port aa’and the total real power delivered to the loads Z and Z2
