Consider The Following Closed Loop System R S C S 24 S S 2 S 6 Select The Correct Gain And Phase Margin Of The 1 (81.68 KiB) Viewed 15 times
Consider The Following Closed Loop System R S C S 24 S S 2 S 6 Select The Correct Gain And Phase Margin Of The 2 (60.94 KiB) Viewed 15 times

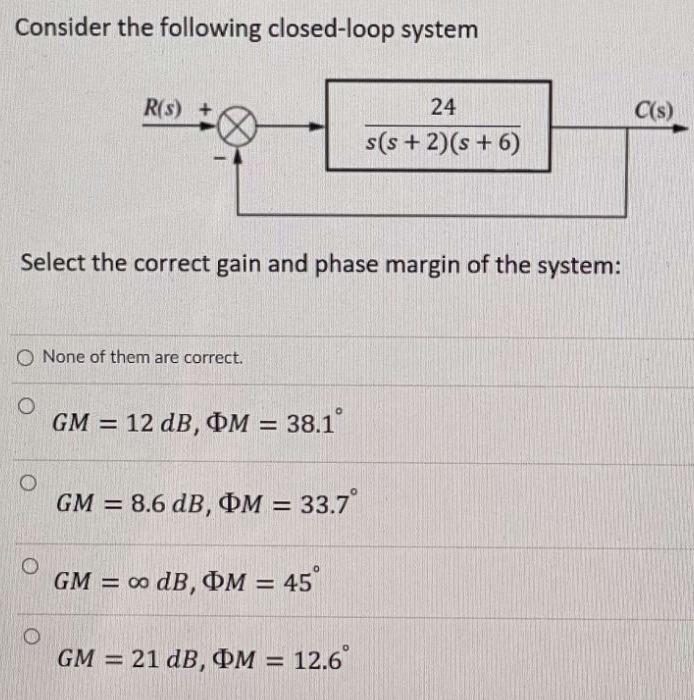

Consider the following closed-loop system R(s) + C(s) 24 s(s + 2)(s + 6) Select the correct gain and phase margin of the system: O None of them are correct. GM = 12 dB, ÓM = 38.1° = GM = 8.6 dB, OM = 33.7° GM = 0 dB, OM = 45° O GM = 21 dB, ØM = 12.6°

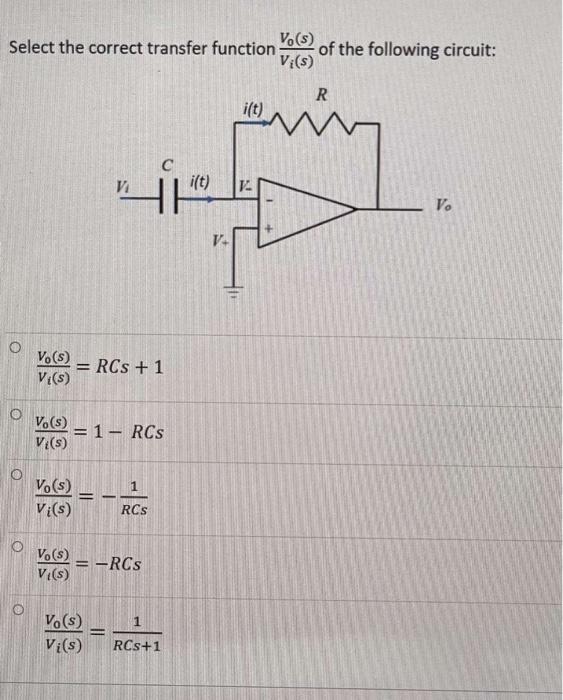

V.(s) Select the correct transfer function of the following circuit: V:(s) R i(t) ein VI i(t) TA Vo 14 O Vo(s) VE(S) = RCs + 1 V.(s) = 1 – RCs V (s) 1 Vo(s) Vis) = RCS V.(s) = -RCS Vis) 1 Vo(s) Vi(s) RCs+1
