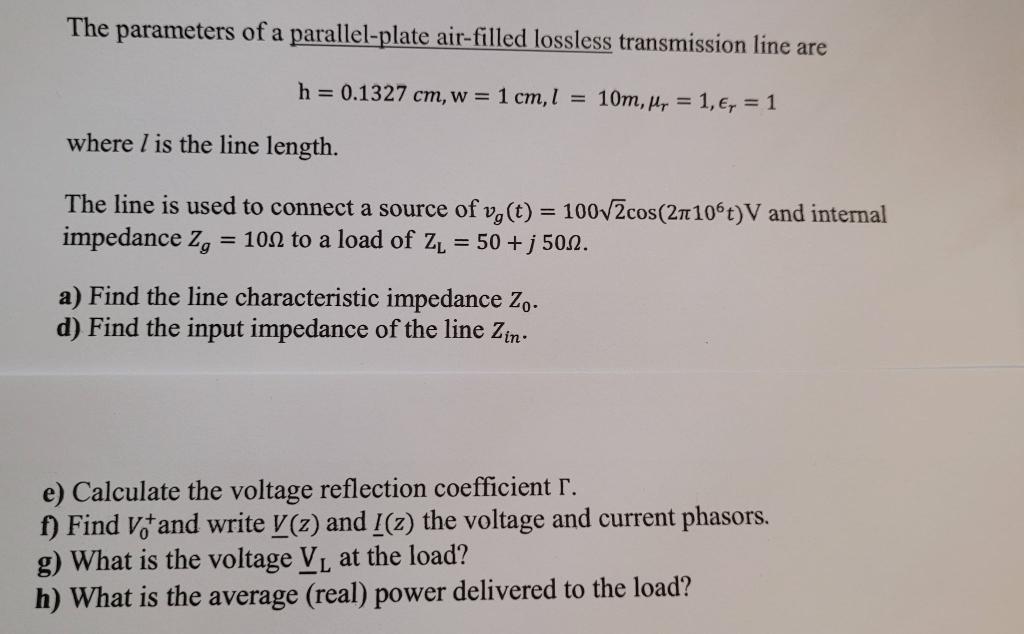

- The Parameters Of A Parallel Plate Air Filled Lossless Transmission Line Are H 0 1327 Cm W 1 Cm L 10m Hy 1 R 1 (60.35 KiB) Viewed 17 times
The parameters of a parallel-plate air-filled lossless transmission line are h = 0.1327 cm,w= 1 cm, l = 10m, Hy = 1,€r =
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The parameters of a parallel-plate air-filled lossless transmission line are h = 0.1327 cm,w= 1 cm, l = 10m, Hy = 1,€r =
The parameters of a parallel-plate air-filled lossless transmission line are h = 0.1327 cm,w= 1 cm, l = 10m, Hy = 1,€r = 1 where l is the line length. The line is used to connect a source of vy(t) = 100V2cos(21t10%t)V and internal impedance Zg = 101 to a load of ZL = 50+ j 501. а a) Find the line characteristic impedance Zo. d) Find the input impedance of the line Zin. e) Calculate the voltage reflection coefficient T. f) Find V.tand write V(z) and 1(z) the voltage and current phasors. g) What is the voltage VL at the load? h) What is the average (real) power delivered to the load?
