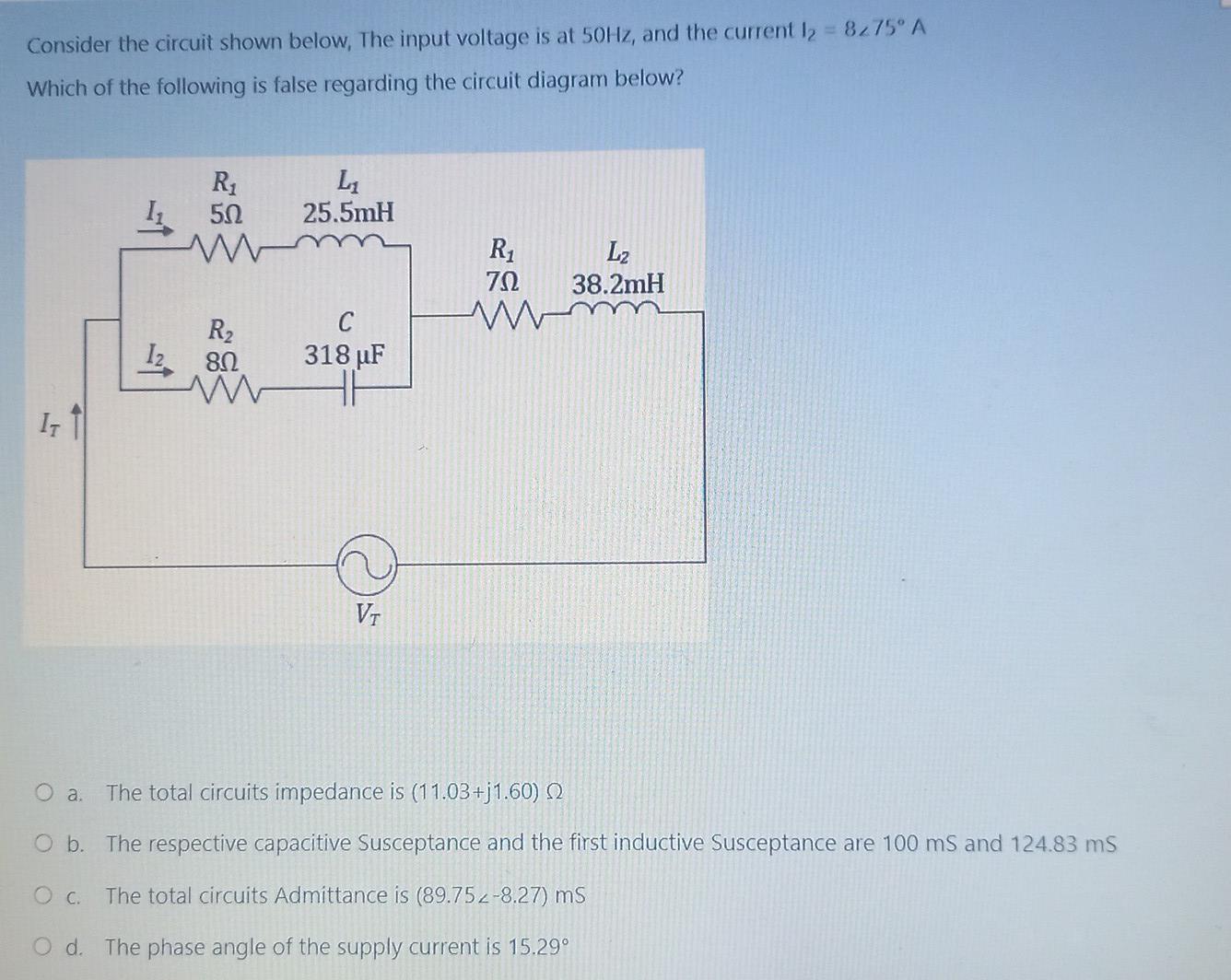

Consider the circuit shown below. The input voltage is at 50Hz, and the currently = 8275° A Which of the following is false regarding the circuit diagram below? R 1:50 M L 25.5mH R L2 38.2mH 722 R2 12. 80 M С 318 uF 1,1 VI O a. The total circuits impedance is (11.03+j1.60) O b. The respective capacitive Susceptance and the first inductive Susceptance are 100 ms and 124.83 ms О с. The total circuits Admittance is (89.752-8.27) ms O d. The phase angle of the supply current is 15.29°
